Fields of application
Restorations and repairs, structural recovery, reinforcement reconstruction, construction of reliable and durable coatings for building, civil, hydraulic, industrial, concrete and masonry works.
Allowed supports
Concrete
Prefabricated concrete
Bricks
Mixed walls (bricks and stones)
Stone walls
Rock walls
Preparation of supports
Application surfaces should be clean, free of dirt, crumbling and non-adhering parts, dust etc., and saturated with water "saturated with dry surface".. An adequate roughening of the surfaces by scarifying, sandblasting etc. is always necessary in order to obtain the maximum adhesion values to the substrate. The optimal values are obtained with high pressure hydro-scarification. Bare the irons undergoing disruptive oxidation or deeply oxidized, removing the rust of the exposed irons (by sandblasting or abrasive brushes). It is advisable to previously to apply the realkalising reinforcement Consilex San on the exposed surfaces, before they are restored.
Mode of use
Pour 2/3 of the total mixing water(about 3 litres per bag) in the concrete mixer, gradually add the product and the remaining water, until a homogeneous lump-free mixture of the desired consistency is obtained. Cure the protection and the prolonged moist hardening of exposed surfaces.
The addition of Bond HG to the mixing water (at a rate of approximately 0.5-0.7 kg for each lot of product) allows substantial improvements in terms of adherence, adhesion, watertightness, workability, moldability and capacity of deformation.
Application methods
Brick trowel
Finishing trowel

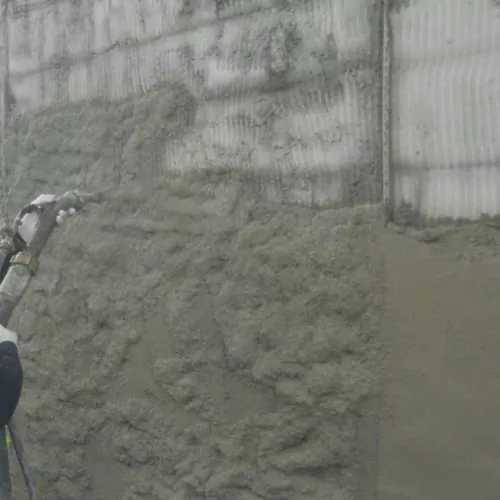

Shotcrete machine
Plastering machine
Spatula
Technical specifications
Compressive strength after 1 day
UNI EN 12190
≥ 19 N/mm²
Compressive strength after 28 days
UNI EN 12190
≥ 55 N/mm²
Flexural strength at 1 day
UNI EN 196/1
> 3.5 N/mm²
Flexural strength after 28 days
UNI EN 196/1
≥ 8 N/mm²
Resistance to carbonatation
UNI EN 13295
1.5 mm
Skid resistance
UNI EN 13036-4
51 mm
Determination of thermal compatibility
UNI EN 13687-1
* > 2 MPa
Reaction to fire
EN 13501-1
A1
Capillary absorption
UNI EN 13057
0.30 kg•h^0.5/m²
Chloride content
UNI EN 1015-17
< 0.01 %
Static elastic modulus
EN 13142
> 21000 N/mm²
Consumption
Approximately 19 kg/m² of Repar Tix for every centimetre of thickness to be implemented (approximately 1900 kg per cubic metre).
Packaging and dimensions
Bag 25 kg
Pallet: 50 x (Bag 25 kg)
Storage and conservation
Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
Warnings
High coating thicknesses, static, monolithic requirements, etc., it may be necessary to resort to appropriate reinforcements (electrowelded mesh etc.) anchored to the support with Syntech Profix or GROUT MICROJ or Repar Tix G2.The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.
Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.
The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.
Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
It is forbidden to dispose of the product and/or packaging in the environment.
