Repar Tix GS

Rheoplastic, structural thixotropic cement mortar for extensive thicknesses

A structural and shrinkage-compensated thixotropic cementitious mortar with a maximum aggregate grain size of 5 mm, consisting of high-strength cements, super-pozzolanic fillers, stabilising additives and high-tenacity polypropylene microfibres. The coarse grain of the aggregate and the excellent workability of the mortar render Repar Tix GS particularly suited to very thick volumetric structural restorations (with a depth of up to 50 mm per single coat applied) on reinforced concrete and masonry, even in environments with aggressive exposure (marine, industrial). It can be applied vertically or to the intrados of reinforced concrete structures, even of significant thickness, always in collaboration with the reinforcing rods, either manually or by spray, without the need for formwork and with wet curing for the first 48โ€“72 hours.
Components
Single-component
Appearance
Powder
Customs code
3824 5090

Request product info

    By submitting I agree to the privacy notice

    Lines of belonging
    Linea prodotto Infratech
    Thematic site
    Concrete Repar
    Features and benefits
    Where it is used
    How to use
    Technical data
    Additional content
    Warnings and precautions
    Media
    Related products

    Repar Tix GS

    Repar Tix GS, the thixotropic structural mortar for significant thicknesses, can benefit from the addition of 0.25% of Fluid SRA, a special additive able to reduce both plastic and hydraulic shrinkage. Fluid SRA protects the curing of the mortar and, mixed with Repar Tix GS, can be considered as a technologically-advanced system able to reduce the rapid evaporation of water from mortar and promote the development of hydration reactions. Thanks to the interaction with certain cement components, Fluid SRA reduces final shrinkage by 20 to 50% compared with the standard values of Repar Tix GS prepared with the addition of water alone.
    Fields of application
    For restorations, repairs, structural reclamations, reconstruction of concrete coverings, and the construction of reliable and durable coatings for construction, civil, hydraulic, industrial, concrete and masonry works in the event of extensive-thickness restorations.
    Allowed supports
    Concrete
    Prefabricated concrete
    Bricks
    Mixed walls (bricks and stones)
    Stone walls
    Rock walls
    Preparation of supports
    The applicative surfaces must be clean, free from contamination or any loose or detached parts, dust, and so on, suitably watered down until it is โ€œsaturated with a dry surfaceโ€. An adequate roughening of the surfaces by scarifying, sandblasting etc. is always necessary in order to obtain the maximum adhesion values to the substrate. The optimal values are obtained with high pressure hydro-scarification. Bare the irons undergoing disruptive oxidation or deeply oxidized, removing the rust of the exposed irons (by sandblasting or abrasive brushes). It is recommended to apply Consilex San consolidating realkalising agent to exposed surfaces in advance, prior to their restoration.
    Mode of use
    Add two-thirds of the total mixing water (about 2.5 litres per bag) to the concrete mixer then gradually add the product and the remaining water until obtaining the desired mixture with a homogeneous consistency free from lumps. Ensure exposed surfaces are protected and wet-cured.
    Adding Bond HG to the mixing water (about 0.5-0.7 kg per bag of product) offers significant improvements in terms of adhesion, adherence, waterproofing, workability, malleability and deformation capacity.

    Application methods
    Brick trowel
    Finishing trowel
    Shotcrete machine
    Plastering machine
    Spatula
    Tool cleaning
    Water
    Key features
    Max. recommended thickness
    Max. recommended thickness: 50 mm
    Maximum diameter of aggregate
    Maximum diameter of aggregate: 5 mm
    Min. recommended thickness
    Min. recommended thickness: 15 mm
    Mix with water
    Mix with water: 14 %
    Nonflammable
    Nonflammable
    Pot-life
    Pot-life: 60 min
    Shelf-life
    Shelf-life: 12 months
    Temperature of use
    Temperature of use: +5 / +35 ยฐC
    Use wearing protective gloves
    Use wearing protective gloves
    UV-resistant
    UV-resistant
    Technical specifications

    Compressive strength after 1 day
    UNI EN 12190

    > 16 MPa

    Compressive strength after 7 days
    UNI EN 12190

    > 40 MPa

    Compressive strength after 28 days
    UNI EN 12190

    > 50 MPa

    Flexural strength at 1 day
    UNI EN 196

    > 3.5 MPa

    Flexural strength after 7 days
    UNI EN 196

    > 7.0 MPa

    Flexural strength after 28 days
    UNI EN 196

    > 8.0 MPa

    Bonding force
    UNI EN 1015-12

    >2.0 N/mmยฒ

    Static elastic modulus
    EN 13142

    29.000 N/mmยฒ

    Density

    2200 g/l

    Water/binder ratio

    0.38

    pH

    > 12.5

    Capillary absorption
    UNI EN 13057

    0.50 kgโ€ขh^0.5/mยฒ

    Darcy impermeability

    1 x 10 E-10 cm/s
    Consumption
    Approximately 19 kg/mยฒ of Repar Tix GS for every centimetre of thickness to be implemented (approximately 1900 kg per cubic metre).
    Available colors
    Gray
    Packaging and dimensions

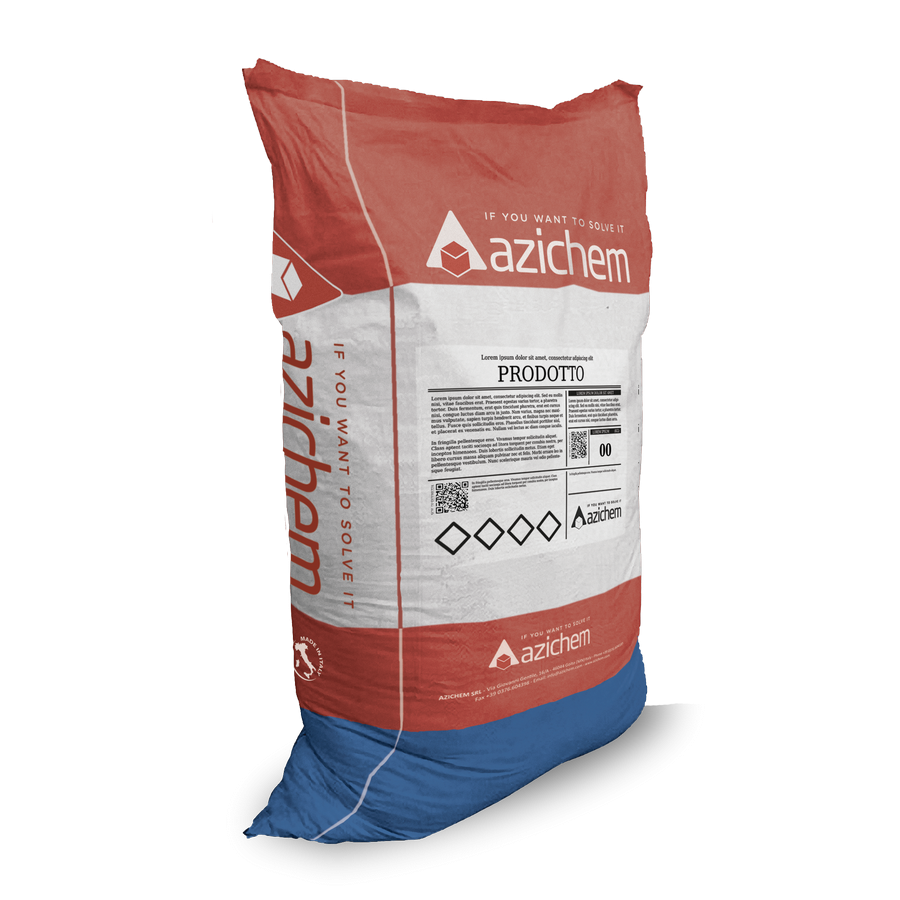

    Bag 25 kg
    Pallet: 50 x (Bag 25 kg)
    Storage and conservation
    Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
    Additional content

    Warnings
    The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
    Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.

    Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
    Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.

    The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.

    Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
    It is forbidden to dispose of the product and/or packaging in the environment.
