Flangia con vite

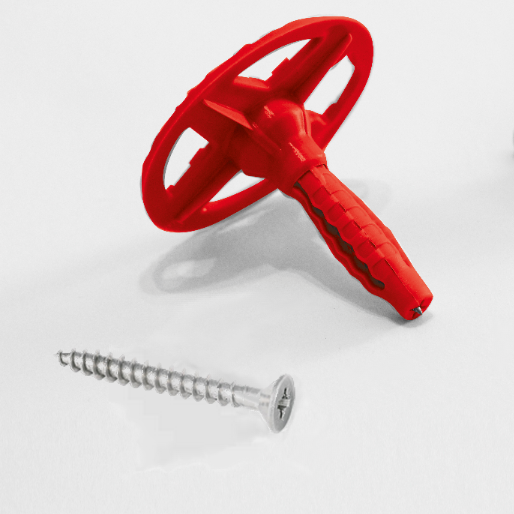

Insulation fastener steel nail and plastic dowel

Insulation fastener plastic dowel (58 mm in diameter and 40 mm in length) with screw in corrosion-resistant galvanised steel (30 mm) for connecting ARMAGLASS STRUCTURA mesh in anti-detachment RINFOR SYSTEM 1 and 2.
Components
Single-component
Appearance
Connector
Customs code
3925 9010

Request product info

    By submitting I agree to the privacy notice

    Obtained Certifications and Regulations
    Cert. Antisfondellamento Solai
    Lines of belonging
    Linea prodotto Building
    Linea prodotto Opus
    Thematic site
    Grout Power
    Features and benefits
    Where it is used
    How to use
    Technical data
    Additional content
    Warnings and precautions
    Media
    Related products

    Flangia con vite

    The dowel is characterised by its gripping surface with improved adherence, to be particularly light, manageable, durable and tensile-resistant due to the closing cap in the input hole of the SCREW FOR CONCRETE that facilitates the operation of shaving with mortars in the RINFOR SYSTEMS 1 and 2. The galvanised steel CONCRETE SCREW is particularly resistant to corrosion.


    Fields of application

    Preventing slab detachment with a Flangia con vite is a robust and economical fastening component in the ARMAGLASS STRUCTURA network of the RINFOR SYSTEMS 1 and 2.


    Allowed supports
    Concrete
    Mode of use

    Make a hole on the concrete joists of the slab respecting the minimum/maximum dimensions indicated in the Technical Specifications then insert the dowel into the hole and fasten with a CONCRETE SCREW.


    Application methods
    To be added to other components
    Apply by hand
    Key features
    Flange housing hole diameter
    Flange housing hole diameter: 8 mm
    Unlimited shelf-life
    Unlimited shelf-life
    Use wearing protective gloves
    Use wearing protective gloves
    UV-resistant
    UV-resistant
    Technical specifications

    Bending moment
    della vite

    20 Nm

    Breaking load longitudinal
    della vite

    22 kN

    Minimum support thickness

    60 mm

    Flange diameter

    58 mm

    Maximum fixable thickness

    70 mm

    Screw head diameter

    11.5 mm

    Minimum depth of the screw hole

    40 mm

    Twist
    della vite

    30 Nm

    Shear strength
    della vite

    12 kN

    Minimum depth of installation of the screw

    30 mm
    Consumption

    No less than 4 pieces per square metre when a Flangia con vite is used in the RINFOR SYSTEMS 1 and 2 to prevent slab detachment.

    Available colors
    Red
    Packaging and dimensions
    Bulk material 1 unit
    Storage and conservation
    Inadequate storage of the product may result in a loss of rheological performance.
    Additional content

    Warnings
    The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
    Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.

    Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
    Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.

    The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.

    Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
    It is forbidden to dispose of the product and/or packaging in the environment.
