Armaglass Structura 115

115 grams/m2 of alkali-resistant fibreglass structural mesh

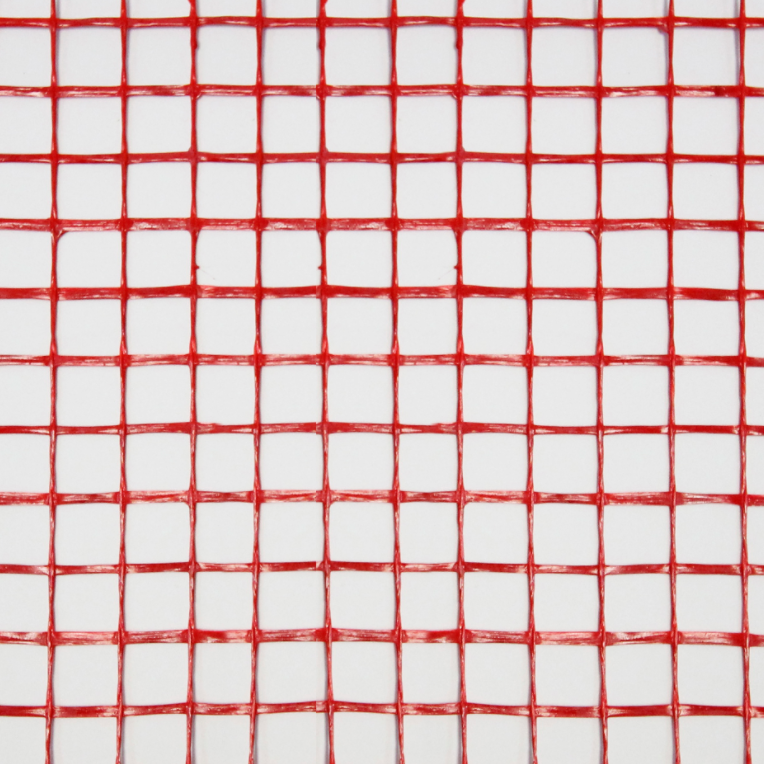

115 g/m2 structural reinforcement mesh in alkali-resistant fibreglass with 12 x 12 mm square mesh, containing >16% zirconium dioxide, constructed with a leno weave and primed with thermosetting polymer. It is straightforward and quick to apply, simple to handle and easy to cut. Resistant to atmospheric agents and aggressive environments, conferring durability to the composite systems in which it is used. Suitable for any substrate and perfectly compatible with both cement- and lime-based mortars. Perfect for strengthening reinforced plastering with an anti-overturning function along with the structural consolidation of masonry and vaulted structures.
Components
Single-component
Appearance
Net
Customs code
7019 6100

Request product info

    By submitting I agree to the privacy notice

    Obtained Certifications and Regulations
    CHEMICAL RESISTANT
    Lines of belonging
    Linea prodotto Building
    Linea prodotto Opus
    Linea prodotto Sanageb
    Sito tematico
    Grout Power
    Features and benefits
    Where it is used
    How to use
    Technical data
    Additional content
    Warnings and precautions
    Media
    Related products

    Armaglass Structura 115

    Easy and quick application, simple to handle and to cut. Combines lightness and thinness with excellent mechanical characteristics in terms of the weft and warp. Resistant to atmospheric agents and aggressive environments, it confers durability to the composite systems in which it is used. Suitable for any substrate and perfectly compatible with both cement-based and lime-based mortars.
    Fields of application
    Armaglass Structura 115 is a mesh for the structural reinforcement and consolidation of masonry and vaulted structures. It is ideal for reinforcing plasters with anti-overturning function.
    Allowed supports
    Plasters
    Concrete
    Cement-based or lime-based mortars
    Mixed walls (bricks and stones)
    Brickworks
    Stone walls
    Porphyry and natural stones
    Bricks
    Mode of use
    Application on masonry and vaults:
    In the event that connectors are being used, proceed with creating holes of a suitable diameter, in accordance with the chosen connection system and arranged in line with the design instructions and with the selected connection system (Armaglass Connector, Armaglass Connector SINGLE, Armaglass Connector Twin). Secure the connectors with resin anchors (Syntech Profix) or hydraulic binder-based slurry (Grout Cable, Sanafluens). Apply an initial layer of mortar (see the technical data sheet of the selected product), positioning the Armaglass Structura 115 mesh on the still-fresh mortar, taking care to ensure an overlap of at least 10 centimetres, before applying the second layer of mortar. Whilst the mortar is still fresh, lay the mesh sheeting, proceeding from top to bottom, and immersing with the help of a putty knife, being sure to overlap each segment by at least 10 centimetres and impeding the formation of bubbles and bends.

    Application methods
    Apply by hand
    Key features
    Lenght
    Lenght: 50 m
    Nonflammable
    Nonflammable
    Suitable for contact with drinking water
    Suitable for contact with drinking water
    Unlimited shelf-life
    Unlimited shelf-life
    Use wearing protective gloves
    Use wearing protective gloves
    UV-resistant
    UV-resistant
    Width
    Width: 100 / 200 cm
    Technical specifications

    Single wire nominal area

    0.229 mm²

    Weft tensile strength (Tensile speed 100 mm / min)

    33 kN/m

    Single warp thread tensile strength (Tensile speed 10 mm / min)
    ISO 527-4,5:1997

    0.356 kN

    Thickness

    0.90 mm

    Warp tensile strength (Tensile speed 10 mm / min)

    26 kN/m

    Resistant warp-weft section
    CNR DT 200 R1/2013

    15.672 mm²/m

    Single warp thread tensile strength (Tensile speed 100 mm / min)
    ISO 10406-1:2015

    0.410 kN

    Dressed fabric weight
    ISO 3374:2000

    112 g/m²

    Warp tensile strength (Tensile speed 100 mm / min)

    30 kN/m

    Glass density

    2.68 g/cm³

    Longitudinal elongation at break

    1.50 %

    Single wire weft tensile strength (Tensile speed 10 mm / min)
    ISO 527-4,5:1997

    0.410 kN

    Raw fabric weight
    ISO 3374:2000

    84 g/m²

    Weft tensile strength (Tensile speed 10 mm / min)

    30 kN/m

    Glass elastic module

    72.000 N/mm²

    Mesh size

    12 x 12 mm

    Single wire weft tensile strength (Tensile speed 100 mm / min)
    ISO 10406-1:2015

    0.452 kN
    Consumption
    1.1 m/m²: The sheets adjacent to the fibreglass mesh are to be overlapped along the edges by at least 10 centimetres.
    Available colors
    Red
    Packaging and dimensions
    Roll 50 m²
    Roll 100 m²
    Storage and conservation
    Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
    Additional content

    Warnings
    The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
    Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.

    Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
    Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.

    The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.

    Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
    It is forbidden to dispose of the product and/or packaging in the environment.
