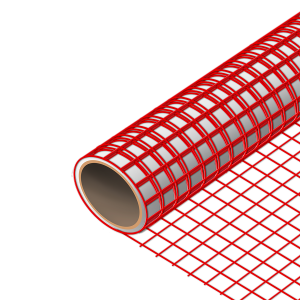

Armaglass Structura 250
Ideal for any type of substrate. Particularly suited to preventing slab detachment in combination with special steel components, also together with mortars with a Unisan hydraulic binder base, which increases the performance of the system by ensuring breathability and a dehumidifying effect.
Fields of application

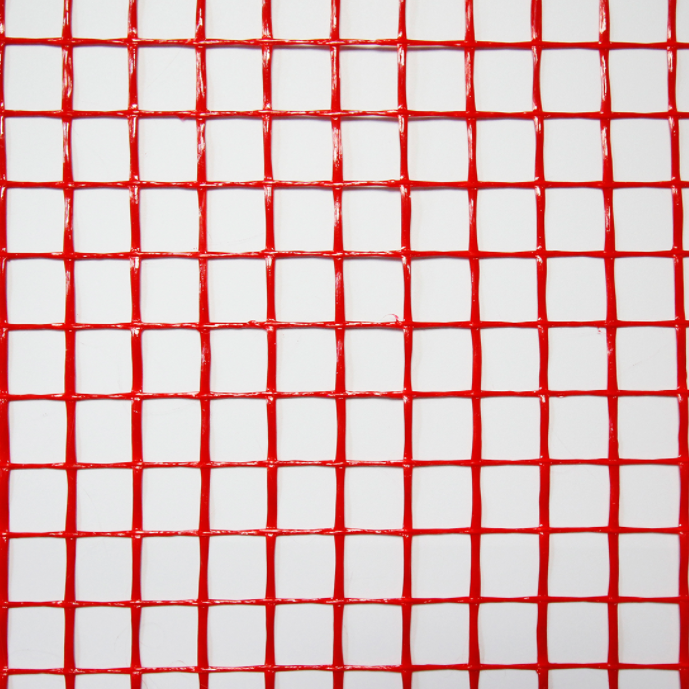

Armaglass Structura 250 is a mesh for the structural reinforcement and consolidation of masonry and vaulted structures. It is ideal for reinforcing plasters with anti-overturning function, for the reinforcement and distribution of shrinkage stresses on walkable or drainage screeds and concrete flooring. A certified mesh to prevent slab detachment in combination with special steel components (screws, dowels, flanges).
Allowed supports
Plasters
Concrete
Cement-based or lime-based mortars
Mixed walls (bricks and stones)
Brickworks
Stone walls
Floor screed
Porphyry and natural stones
Bricks
Mode of use
Application on masonry and vaults:
In the event that connectors are being used, proceed with creating holes of a suitable diameter, in accordance with the chosen connection system and arranged in line with the design instructions and with the selected connection system (Armaglass Connector, Armaglass Connector SINGLE, Armaglass Connector Twin). Secure the connectors with resin anchors (Syntech Profix) or hydraulic binder-based slurry (Grout Cable, Sanafluens). Apply an initial layer of mortar (see the technical data sheet of the selected product), positioning the Armaglass Structura 250 mesh on the still-fresh mortar, taking care to ensure an overlap of at least 10 centimetres, before applying the second layer of mortar. Whilst the mortar is still fresh, lay the mesh sheeting, proceeding from top to bottom, and immersing with the help of a putty knife, being sure to overlap each segment by at least 10 centimetres and impeding the formation of bubbles and bends.
Application on screeds:
Apply an initial layer of screed (see the technical data sheet of the selected product), laying the Armaglass Structura 250 mesh on the first layer of still-fresh screed, taking care to ensure an overlap of at least 10 centimetres, then applying the second layer of screed.
Technical specifications
Single wire weft tensile strength (Tensile speed 10 mm / min)
ISO 527-4,5:1997
1.41 kN
Resistant warp-weft section
CNR DT 200 R1/2013
33.95 mm²/m
Weft tensile strength (Tensile speed 10 mm / min)
58 kN/m
Net elastic modulus (weft)
61.097 N/mm²
Single wire weft tensile strength (Tensile speed 100 mm / min)
ISO 10406-1:2015
1.57 kN
Weft tensile strength (Tensile speed 100 mm / min)
64 kN/m
Single warp thread tensile strength (Tensile speed 10 mm / min)
ISO 527-4,5:1997
1.34 kN
Warp equivalent thickness
CNR DT 200 R1/2013
0.0339 mm
Warp tensile strength (Tensile speed 10 mm / min)
55 kN/m
Dressed fabric weight
ISO 3374:2000
280 g/m²
Single warp thread tensile strength (Tensile speed 100 mm / min)
ISO 10406-1:2015
1.60 kN
Equivalent texture thickness
CNR DT 200 R1/2013
0.0339 mm
Longitudinal elongation at break
1.70 %
Warp tensile strength (Tensile speed 100 mm / min)
65 kN/m
Net elastic modulus (warp)
58.441 N/mm²
Raw fabric weight
ISO 3374:2000
182 g/m²
Consumption
1.1 m/m²: The sheets adjacent to the fibreglass mesh are to be overlapped along the edges by at least 10 centimetres.
Storage and conservation
Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
Warnings
The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.
Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.
The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.
Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
It is forbidden to dispose of the product and/or packaging in the environment.
