Grout 2

Rheoplastic, structural, anti-shrinkage mortar, for precision anchorage

Grout 2 is a high-performance, self-levelling pourable mortar that is fibre-reinforced with Readymesh PM-060 microfibres, with high durability even in aggressive environments, great adhesion on concrete and steel and compensated shrinkage. Aggregates with a maximum size of 2 mm. Ideal for anchoring machinery with subplate casting, anchoring seismic isolators and embedding bars, for repairs and reinforcements that are quite thin (2–6 cm) on reinforced concrete and masonry structures.
Components
Single-component
Appearance
Powder
Customs code
3824 5090

Request product info

    By submitting I agree to the privacy notice

    Obtained Certifications and Regulations
    EN 1504-6EN 1504-3
    Lines of belonging
    Linea prodotto Infratech
    Thematic site
    Concrete ReparGrout Power
    Features and benefits
    Where it is used
    How to use
    Technical data
    Additional content
    Warnings and precautions
    Media
    Related products

    Grout 2

    Grout 2 is self-leveling, perfectly pourable, with a maximum aggregate size of 2 mm, and is able to completely fill the most tortuous cavities, normally inaccessible, even if far from the casting point and with a very narrow air gap. The high content of microsilic with pozzolanic activity and the absence of "bleeding", help to generate a very strong adhesion to the substrate and to the foundation or reinforcement iron. Other features are the elimination of plastic shrinkage, the compensation of hygrometric shrinkage, excellent durability to chemical attacks, freeze and thaw cycles, resistance to fats and oils.
    The exceptional ANTI-CORROSIVE and PROTECTIVE capacity ON REINFORCEMENTS is achieved thanks to the following properties:
    • the mix of highly resistant superfine binders, combined with very fine silicas with pozzolanic activity, makes the mortars, at the end of the hardening process, intrinsically impermeable to water;
    • the strongly alkaline pH (> 12) protects the reinforcing rods from the initiation of corrosion;
    • the negligible breathability to carbon dioxide gives the hardened mortars very high anti-carbonation characteristics.
    The combination of these anticorrosive specificities makes the classic passivation treatment of reinforcing bars, preparatory to the casting of the pourable mortar, NOT NECESSARY, provided that, between the white metal cleaning operations and the castings of the pourable mortar, it does not elapse too long. time, with the risk of a new start of oxidative processes. Therefore, only if long exposure times are foreseen between the cleaning operations of the iron and the castings of the pourable mortar, it is advisable to treat with passivating grout (Repar Monosteel or Repar Steel), applied with a brush and localized only on d 'armor. For the construction of road joints, in works with high vehicle traffic, it is possible to add Grout 2 with 25 kg / m³ (300 gr / 25 kg bag) of Readymesh MM-150 steel fibers and 1 kg / m³ (10 gr / bag) of Readymesh PM-060 polypropylene fibers.

    Fields of application

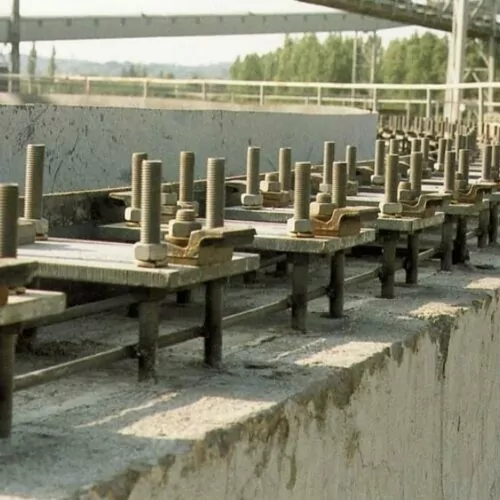

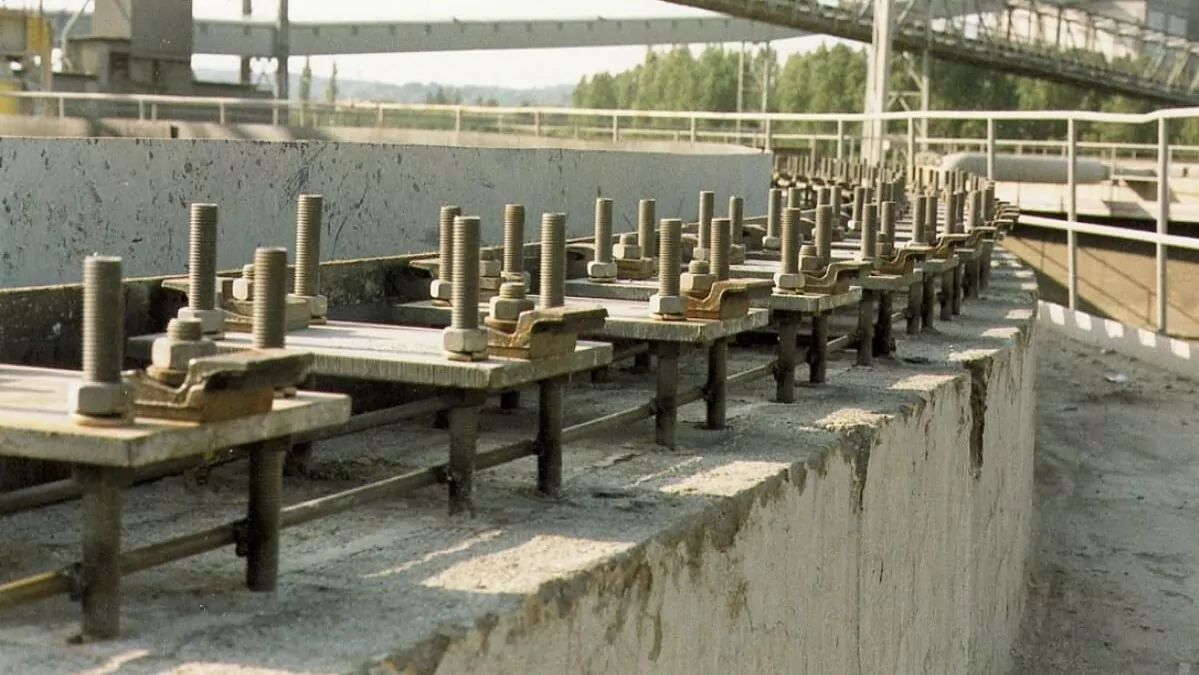

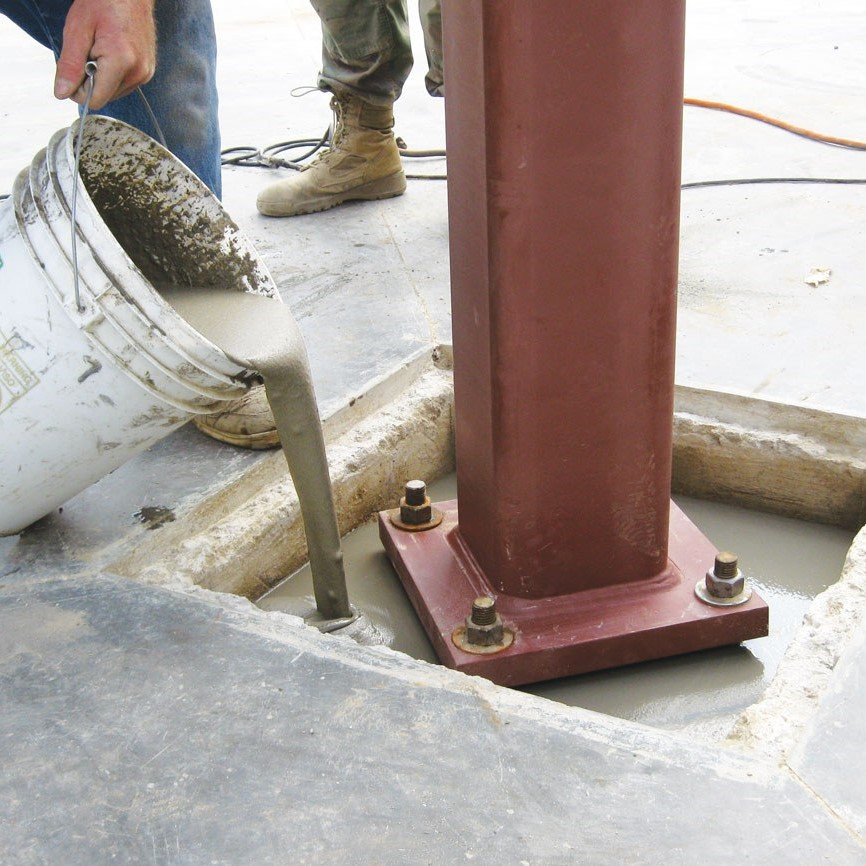

    Precision anchorage of operating machines: presses, turbines, power supplies, rolling mills, alternators, bridge cranes, metal structures, tracks, etc. Structural adjustments, restorations, drawing and armouring, through injections or castings poured in caisson. Realisation of connecting anchorages through steel bars with diameter and depth consistent with design specifications, through casting in perforations provided for this purpose. Construction of structural road joints.
    Allowed supports
    Concrete
    Prefabricated concrete
    Mixed walls (bricks and stones)
    Rusty reinforcement rods
    Preparation of supports
    Application surfaces should be clean, free of soiling, crumbling and non-adhering parts, dust, etc., conveniently saturated with water until they reach the condition "saturated with dry surface". An adequate roughening of the surfaces by scarifying, sandblasting etc. is always necessary in order to obtain the maximum adhesion values to the substrate. The optimal values are obtained with high pressure hydro-scarification. Bare the irons undergoing disruptive oxidation or deeply oxidized, removing the rust of the exposed irons (by sandblasting or abrasive brushes).
    Mode of use
    Insert 2/3 (approximately 2.5 litres per bag) of the total mixing water in the cement mixer, then gradually add the product and the remaining water, mix until a homogeneous lump-free mixture of the desired consistency is obtained.

    For high anchoring sections Ghiaietto 6.10 should be added (please refer to the appropriate technical data sheet for more information).

    Application methods
    Pour out
    Tool cleaning
    Water
    Key features
    Max. recommended thickness
    Max. recommended thickness: 15 cm
    Maximum diameter of aggregate
    Maximum diameter of aggregate: 2 mm
    Min. recommended thickness
    Min. recommended thickness: 2 cm
    Mix with water
    Mix with water: 14 %
    Pot-life
    Pot-life: 30 min
    Shelf-life
    Shelf-life: 12 months
    Temperature of use
    Temperature of use: +5 / +35 °C
    UV-resistant
    UV-resistant
    Technical specifications

    Compressive strength after 1 day
    EN 12190

    > 45 N/mm²

    Compressive strength after 7 days
    EN 12190

    > 75 N/mm²

    Compressive strength after 28 days
    EN 12190

    > 90 N/mm²

    Flexural strength at 1 day
    EN 196/1

    > 7 N/mm²

    Flexural strength after 7 days
    EN 196/1

    > 11 N/mm²

    Flexural strength after 28 days
    EN 196/1

    > 13 N/mm²

    Resistance to the extraction of the steel bars with improved adhesion
    RILEM-CEB-FIP RC6-78

    > 24 MPa

    Skid resistance
    EN 13036-4 - CS III

    68 mm

    Resistance to carbonatation
    EN 13529

    1 mm
    Resistance to lubricating oils (oil bath for 60 days at 40°C): NO DEGRADES

    Static elastic modulus
    EN 13412

    30000 N/mm²

    Reaction to fire
    EN 13501-1

    A1

    Water/binder ratio

    0.35

    Bonding force
    UNI EN 1542

    2.32 N/mm²

    Density
    UNI EN 1015-6

    2100 kg/m³

    Capillary absorption
    UNI EN 13057

    0.45 kg•h^0.5/m²

    Darcy impermeability

    10⁻¹⁰ cm/s

    Chloride content
    EN 1015-17

    < 0.01 %

    Determination of thermal compatibility
    EN 13687-1 - A/B

    2.0 N/mm²
    Consumption
    Approximately 19 kg/m² of Grout 2 for every centimetre of thickness to be implemented (approximately 1900 kg per cubic metre).
    Available colors
    Gray
    Packaging and dimensions
    Bag 25 kg
    Pallet: 50 x (Bag 25 kg)
    Storage and conservation
    Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
    Additional content

    Additional adhesion parametres

    • Adhesion to smooth iron: >4.5 N/mm²
    • Adhesion to iron with improved adherence : >35 N/mm²
    Warnings
    Given the self-levelling properties of the product and its self-compacting properties, it is recommended to pay special attention to the vibration step. A excessive zeal in the vibration operation can worsen the aesthetic appearance of the resulting product.

    Do not use in the absence of adequate lateral confinement.

    Cure the protection and the moist hardening of exposed surfaces.

    Adopt casting procedures capable of ensuring the absence of gaps and discontinuities, pouring the mortar from a single part of the casting perimetre to avoid air pockets.The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
    Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.

    Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
    Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.

    The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.

    Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
    It is forbidden to dispose of the product and/or packaging in the environment.
