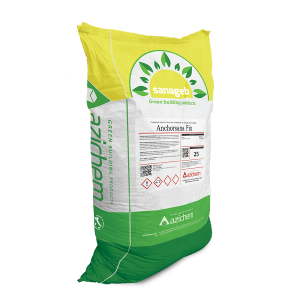

Anchorsana Fix

Quick compound, lime and aluminate based, for fixings and anchors

Premixed based on hydraulic lime, special sulfur aluminate binders, water retainers, shrinkage compensators and reducers of the water/binder ratio, used for fixing and anchoring, in masonry, connectors, inserts, bars, brackets, grouting of the joints, tacking of lesions. It is a product with accelerated setting and hardening, with setting start at 30 ', end setting at 60' and development of mechanical strength already after 90 'of curing. Particularly recommended in the restoration of period and monumental buildings.
Components
Single-component
Appearance
Powder
Customs code
3824 5090

Request product info

    By submitting I agree to the privacy notice

    Obtained Certifications and Regulations
    EN 998-1EN 998-2M20
    Lines of belonging
    Linea prodotto Building
    Linea prodotto Infratech
    Linea prodotto Opus
    Linea prodotto Sanageb
    Thematic site
    Grout Power
    Features and benefits
    Where it is used
    How to use
    Technical data
    Additional content
    Warnings and precautions
    Media
    Related products

    Anchorsana Fix

    The particularly fine constituent materials allow adequate anchoring even in the presence of a small space between hole and connectors. By mixing Anchorsana Fix with different water contents, the product passes from thixotropic consistencies (23% water) to fluid gel consistencies (30% water), allowing any type of anchoring, from overhead to inclinations towards the bass. The product does not contain resins and solvents and can also be used indoors, subject to the usual precautions necessary when handling materials based on alkaline and irritating powders such as lime (use suitable personal protective equipment, such as gloves and protective goggles).
    Fields of application
    Fixing and anchoring, in masonry bodies, of rigid connectors, jib connectors, inserts, bars with improved adherence, anchors. It develops great adhesion on materials of different nature: metal, fiberglass, basalt.
    Allowed supports
    Plasters
    Concrete
    Cement-based or lime-based mortars
    Bricks
    Tuff
    Mixed walls (bricks and stones)
    Brickworks
    Stone walls
    Floor screed
    Preparation of supports
    Blow with compressed air and forced suction of the housing holes. The application surfaces must be clean, free of dirt, moving, crumbly and incoherent parts, dust, etc., suitably saturated with water until reaching the condition of "saturated with dry surface".
    Mode of use
    Pour about 2/3 of the mixing water into the mixer; gradually add Anchorsana Fix and the water still required, continuing to mix, until a homogeneous, lump-free mixture of the desired consistency is obtained. Apply with a trowel or by casting. The mixing water indicatively required is equal to 23% by weight for thixotropic doughs, and to 30% by weight for doughs with a plastic-fluid consistency.
    Application methods
    Brick trowel
    Pour out
    Tool cleaning
    Water
    Key features
    Density
    Density: 1.97 kg/dmยณ
    Maximum diameter of aggregate
    Maximum diameter of aggregate: 0.5 mm
    Mix with water
    Mix with water: 23 - 30 %
    Nonflammable
    Nonflammable
    Pot-life
    Pot-life: 15 min
    Shelf-life
    Shelf-life: 6 months
    Temperature of use
    Temperature of use: +5 / +30 ยฐC
    Use wearing protective gloves
    Use wearing protective gloves
    Technical specifications

    Compressive strength after 1,5 hours
    EN 12190

    > 4 MPa

    Compressive strength after 1 day
    EN 12190

    > 13 MPa

    Compressive strength after 28 days
    EN 12190

    > 30 MPa

    Flexural strength at 1 day
    EN 12190

    > 4 MPa

    Flexural strength after 28 days
    EN 12190

    > 6 MPa

    Static elastic modulus
    EN 13412

    15000 N/mmยฒ

    Permeability to water vapor

    โ‰ค 35

    Complete hardening at 20ยฐC

    70 min

    Capillary absorption
    UNI EN 1015-18

    < 0.50 kgโ€ขh^0.5/mยฒ

    Touch hardening at 20ยฐC

    30 min

    Bonding force
    UNI EN 1015-12

    > 1.0 N/mmยฒ

    pH

    > 12

    Reaction to fire
    EN 13501-1

    A1
    Consumption
    Approximately 1.6 kg of Anchorsana Fix for each cubic decimeter of volume to be filled.
    Available colors
    Light gray
    Packaging and dimensions
    Bag 25 kg
    Pallet: 50 x (Bag 25 kg)
    Storage and conservation
    Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
    Additional content

    Warnings
    The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
    Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.

    Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
    Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.

    The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.

    Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
    It is forbidden to dispose of the product and/or packaging in the environment.
