Syntech Layer

Two-component, protective, transparent aliphatic polyurethane finish

Two-component aliphatic polyurethane finish, UV resistant, transparent, in water dispersion, for finishing concrete surfaces and multilayer resin systems. The finish is available in three versions: Glossy, Satin, Matt. The product is suitable for environments with the presence of food, and can therefore be used to protect walls and ceilings that comply with the HACCP protocol, in order to prevent possible food contamination.
Customs code
3907 3000

Request product info

    By submitting I agree to the privacy notice

    Lines of belonging
    Linea prodotto Building
    Linea prodotto Floor
    Linea prodotto Infratech
    Features and benefits
    Where it is used
    How to use
    Technical data
    Additional content
    Warnings and precautions

    Syntech Layer

    Excellent mechanical and abrasion resistance
    Uniform finish
    Low maintenance over time
    Good resistance to UV and yellowing
    Resistant to atmospheric agents
    Possible non-slip finish
    Wide range of transparent finishes available


    Gloss (Gloss EN ISO 2813: 80 ÷ 90 Gloss Unit)

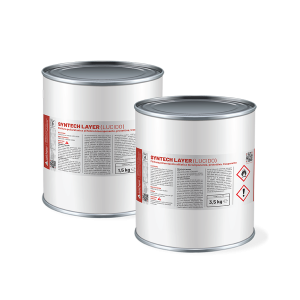

    1 kg kit: 1 can of 0.71 kg [A] + 1 can of 0.29 kg [B]
    5 kg kit: 1 x 3.5 kg jar [A] + 1 x 1.5 kg jar [B]
    10 kg kit: 1 x 7.1 kg can [A] + 1 x 2.9 kg can [B]

    Satin (Gloss EN ISO 2813: 30 ÷ 40 Gloss Unit)

    1 kg kit: 1 can of 0.77 kg [A] + 1 can of 0.23 kg [B]
    5 kg kit: 1 x 3.8 kg jar [A] + 1 x 1.2 kg jar [B]
    10 kg kit: 1 x 7.7 kg can [A] + 1 x 2.3 kg can [B]

    Matt (Gloss EN ISO 2813: < 10 Gloss Unit)

    1 kg kit: 1 can of 0.73 kg [A] + 1 can of 0.27 kg [B]
    5 kg kit: 1 can of 3.65 kg [A] + 1 can of 1.35 kg [B]
    10 kg kit: 1 can of 7.3 kg [A] + 1 can of 2.7 kg [B]

    Fields of application
    • It is used as a smooth or non-slip finish and coating, UV resistant, waterproof, abrasion resistant, for concrete and cementitious substrates subject to mechanical stress

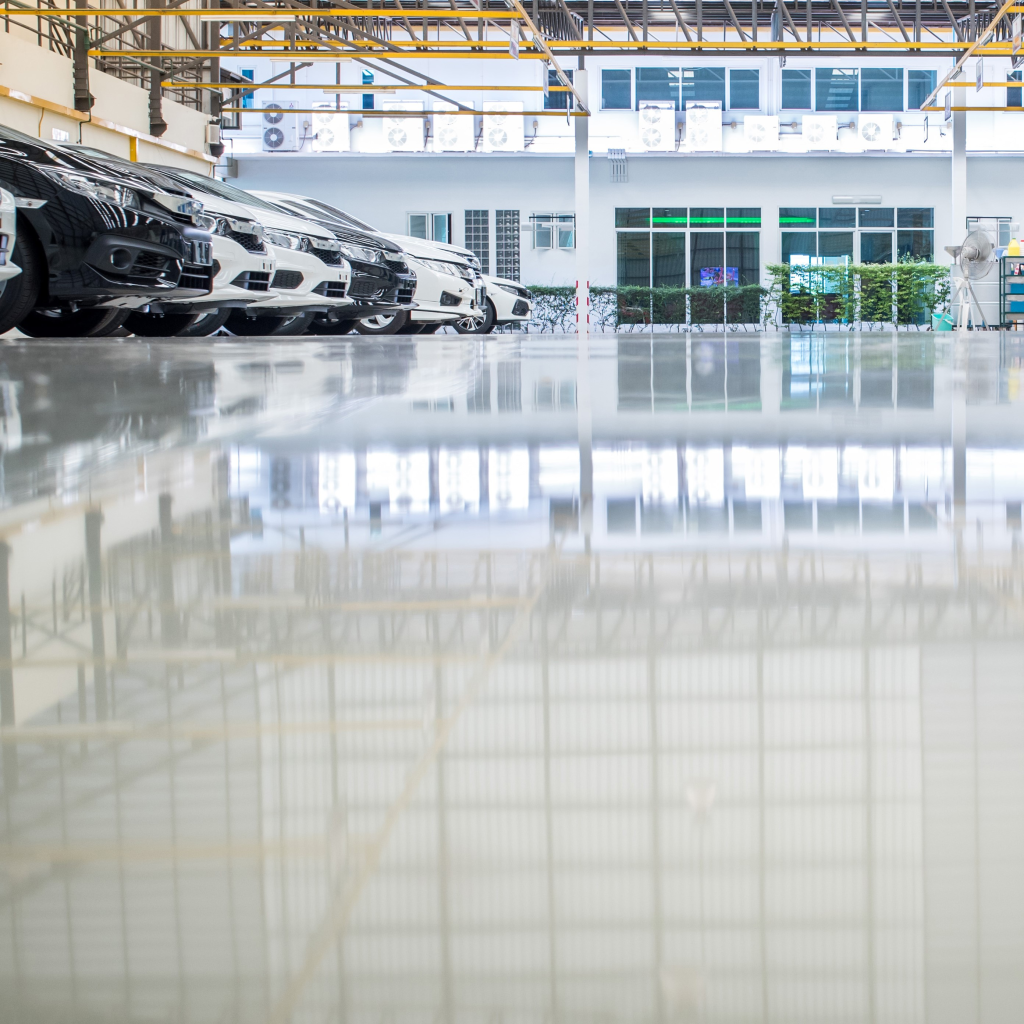

    • Transparent coating for multilayer systems, particularly suitable for industrial floors in car parks, ramps, warehouses, etc. or concrete infrastructures such as bridges, viaducts, silos, tanks, pylons, etc.
    • It can also be applied on steel supports after appropriate preparation and priming of the base
    • Its special odorless formulation makes it particularly suitable for applications in closed environments

    Allowed supports
    Resin coatings
    Preparation of supports

    The surfaces to be coated must be stable, clean and free of substances that could affect the adhesion of the coating, such as dirt, grease, oil, residues of coatings and surface treatments, etc. The weak parts must be removed before applying the product by mechanical sanding with diamond discs and vacuum cleaning.
    The tensile strength of the concrete must not be less than 1.5 N/mm².

    Resin coatings
    The surfaces to be covered must be stable, clean and free of substances such as dirt, grease, oil, etc. which can affect the adhesion of the coating. Smooth the surface by mechanical sanding with diamond discs and vacuum. It is recommended to wash the surfaces
    and let them dry completely before applying the finish.


    The application of SYNTECH LAYER must always be preceded by the application of a coat of SYNTECH PAVISHEER water-based epoxy anchoring primer diluted with clean water in the ratio 1:1 by weight.

    Resin coatings
    The application of SYNTECH LAYER must always be preceded by sanding the entire surface in order to promote and guarantee optimal adhesion of the product to the support.

    Mode of use

    Before mixing, briefly shake components A and B until completely homogeneous. Combine the two components in the indicated mixing ratio. Add component B (hardener) to component A (base) and mix thoroughly until the product is completely homogenised. It is advisable to start mixing briefly with an electric drill at low speed and then intensify the stirring up to a maximum of 300-400 rpm. Once mixed, a colored emulsion is formed which must be immediately diluted, always under mechanical stirring, by adding a maximum of 20÷25% by weight of clean water according to the intended use.

    The product can be applied evenly by spray or short-haired roller to avoid accumulations of material which could give rise to aesthetic defects. A more uniform finish is obtained by overlapping with the product to be laid all the layers fresh on fresh along the edges of the areas of material already laid. To obtain a homogeneous finish free from application defects, we recommend spraying the finish without contact. In this way it is possible to preserve the structure of the original surface, avoiding the possible formation of traces due to the passage of the brush or roller. Apply one or more coats of SYNTECH LAYER, taking care to respect the indicated consumption and thickness.

    Non-slip finish
    To obtain a finish with non-slip properties, add a maximum of 5% by weight of SYNTECH MICROPOLY to the finish (choose the type based on the desired degree of anti-slip). Mix the two products carefully then apply the finish with a short-haired roller. The anti-slip additive tends to settle quickly on the bottom of the container, therefore once added to the finish, it is necessary to stir it frequently during the installation operations in order to carry out a homogeneous application and avoid the alternation of poor areas and areas with excessive accumulations of particles. The addition of SYNTECH MICROPOLY can slightly change the final brilliance of the film.

    Application methods
    Paint roller
    Tool cleaning
    Syntech Diluente Poliuretanico
    Key features
    Shelf-life: 12 months
    Temperature of use
    Temperature of use: +5 / +30 °C
    To be applied in two coats
    To be applied in two coats
    Use wearing protective gloves
    Use wearing protective gloves
    Technical specifications

    Adhesion by direct traction
    EN 1542

    ≥ 4 N/mm²

    Thermal compatibility after cooling shocks - storm cycles
    EN 1198

    No alteration

    Persoz EN ISO 1522

    205 ± 5 s

    Permeability to water vapor
    EN ISO 7783-1

    Sd < 1 m

    Permeability to CO2
    EN 1062-6

    Sd > 150 m

    Dirty grip
    EN 10792

    ΔL 0.94 %

    Resistance to particular washing agents (detergent A, B, C)
    EN 2812-1

    No alteration

    Resistance to particular disinfection agents (detergent D)
    EN 2812-1

    No alteration

    Resistance to severe chemical attacks
    EN 13529

    See table

    Resistance to washing
    EN 1198

    Ldft 0.38 μm

    Taber abrasion resistance expressed as weight loss in grams (H22 wheel - 1000 g - 1000 rpm)
    EN ISO 5470-1

    < 3.000 mg

    Impact resistance
    EN ISO 6272-1

    > 4 Nm

    Dry residue

    53 %

    Touch hardening at 20°C

    2 h

    Complete hardening at 20°C

    7 day

    Working temperature

    -20 / +70 °C

    < 500 g/l

    From 0.10 to 0.13 kg of Syntech Layer for each square meter of surface.

    Available colors
    Packaging and dimensions
    Glossy: Tin 3.3 kg [A]
    Glossy: Tin 1.7 kg [B]
    matt: tin 2.2 kg [B]
    Satin: tin 3.1 kg [A]
    Satin: tin 1.9 kg [B]
    Kit: 1 Glossy: Tin 3.3 kg [A] + 1 Glossy: Tin 1.7 kg [B]
    matt: tin 2.8 kg [A]
    Kit: 1 matt: tin 2.8 kg [A] + 1 matt: tin 2.2 kg [B]
    Kit: 1 Satin: tin 3.1 kg [A] + 1 Satin: tin 1.9 kg [B]
    Glossy: Tin 6.7 kg [A]
    Glossy: Tin 3.3 kg [B]
    matt: tin 5.5 kg [A]
    matt: tin 4.5 kg [B]
    Satin: tin 6.2 kg [A]
    Satin: tin 3.8 kg [B]
    Kit: 1 Glossy: Tin 6.7 kg [A] + 1 Glossy: Tin 3.3 kg [B]
    Kit: 1 matt: tin 5.5 kg [A] + 1 matt: tin 4.5 kg [B]
    Kit: 1 Satin: tin 6.2 kg [A] + 1 Satin: tin 3.8 kg [B]
    Storage and conservation
    Protect from freezing.
    Additional content

    Workability time

    10°C                20°C                30°C

    150’                 120’                 90’


    Waiting time on your hands

                          10°C                20°C                30°C

    Minimum          8h                    6h                    5h

    Maximum        24h                  24h                  24h



                        minimum            maximum         recommended

    Dry                50 mm              65 mm             60 mm

    Wet               100 mm           130 mm           120 mm





    Light Traffic

    Heavy Traffic

    15 °C

    24 h

    48 h

    72 h

    20 °C

    24 h

    36 h

    48 h


    12 h

    36 h

    48 h



    The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
    Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.

    Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
    Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.

    The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.

    Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit:
    It is forbidden to dispose of the product and/or packaging in the environment.
