Sealpvc SF 240 Bulb

Waterstop in PVC for dynamic construction joints resting on the bottom

The Sealpvc SF 240 Bulb waterstop is a waterproofing PVC profile that is not hydro-expansive, having a thickness of 24 centimetres and equipped with a central and highly elastic bulb. It is used in dynamic joints for horizontal casting (slabs), in concrete structures, resting on the substrate beneath the reinforcement, in a position central to the casting.
Components
Single-component
Appearance
Extruded PVC
Customs code
3925 9010

Request product info

    By submitting I agree to the privacy notice

    Lines of belonging
    Linea prodotto Aqua
    Linea prodotto Infratech
    Thematic site
    ProSeal
    Features and benefits
    Where it is used
    How to use
    Technical data
    Additional content
    Warnings and precautions
    Media
    Related products

    Sealpvc SF 240 Bulb

    Given its particular composition, it can be cut with a sharp blade (cutter) and welded with simple heat welding tools, thus making it easier to create connections in the course of work.
    Fields of application
    Waterproofing of dinamic construction joints between: raft foundation and the elevation wall, between two raft foundations, between two elevation walls, between the wall and floor, resting on foundations under the shoring.
    Allowed supports
    Concrete
    Mode of use

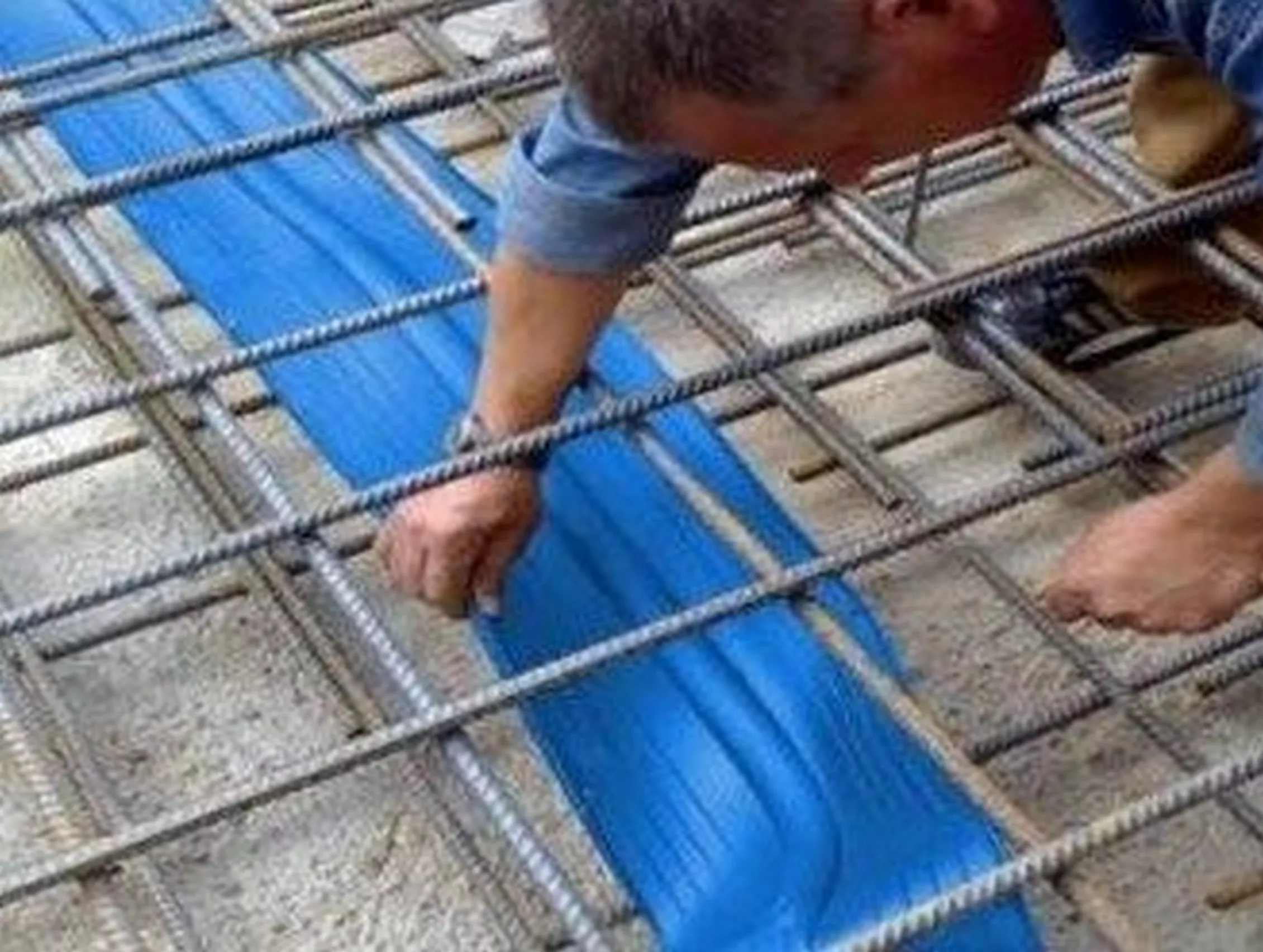

    Bind with iron wire the side flaps of the waterstop to the steel plates provided, in order to position it and secure it in a central position with respect to the casting to be made. Proceed with the casting operations, ensuring it does not bend nor move from the seat identified.
    Application methods
    Apply by hand
    Key features
    Nonflammable
    Nonflammable
    Unlimited shelf-life
    Unlimited shelf-life
    UV-resistant
    UV-resistant
    Width
    Width: 240 mm
    Technical specifications
    Consumption
    1 m/m: Use Sealpvc SF 240 Bulb welding the two edges of different belts head to head using a leister (manual hot air welder).
    Available colors
    Light blu
    Packaging and dimensions
    Roll 25 m
    Storage and conservation
    Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
    Additional content

    Warnings
    Pay careful attention both to the positioning of the waterstop and to any welds. Incorrect positioning could indeed nullify the performance.The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
    Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.

    Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
    Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.

    The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.

    Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
    It is forbidden to dispose of the product and/or packaging in the environment.
