Floor Level HP Therm

Self-levelling mortar specific for coil heating systems

Floor Level HP Therm is a self-levelling modified-polymer cement mortar having fibre-reinforcement, with high thermal conductivity, fast-acting hold and rapid hardening. Applied prior to laying the flooring, it is perfect for levelling at thicknesses ranging from 3 mm to 15 mm so as to adapt to any type of covering. Particularly suitable for radiant flooring.
Components
Single-component
Appearance
Powder
Customs code
3824 5090

Request product info

    By submitting I agree to the privacy notice

    Obtained Certifications and Regulations
    EN 13813C30 F7
    Lines of belonging
    Linea prodotto Building
    Linea prodotto Floor
    Thematic site
    Grout Power
    Features and benefits
    Where it is used
    How to use
    Technical data
    Additional content
    Warnings and precautions
    Media
    Related products

    Floor Level HP Therm

    The perfect pourability, fluidity and self-levelling properties of the mortar facilitate the coating operations, to quickly attain perfect planarity. By casting the product on the substrate and helping to spread the self-levelling product with a putty knife, the resulting surface is perfectly smooth thanks to the fine granulometry of the silica aggregate (with a maximum size of 0.5 mm). Floor Level HP Therm is additivated with shrinkage reducers and fibre-reinforced with special anti-cracking glass microfilaments, being alkali resistant and with a high content of zirconium (READYMESH technology), metal microfibres 6 millimetres in length, and iron-silicate microaggregates with high volumic mass, all to confer exceptional dimensional stability to the product. As an additive, Floor Level HP Therm has a special high-flexibility powder adhesive that ensures the product bonds to various media without affecting the self-levelling characteristics and breathability to water vapour. The swift development of mechanical resistors ensures the immediate progression of construction operations and walkability just a few hours after application (approximately 4-5 hours at 20ยฐ C). Fast drying means the floor coverings and finishing operations can be applied sooner โ€“ always checking the moisture content of the hardened mortar with a calcium carbide hygrometer or electrical hygrometer and bearing in mind that the latter provides merely indicative values that should be calibrated on the product in advance.
    Fields of application
    Floor Level HP Therm can be used to shave uneven substrates to be levelled then subsequently covered with various types of flooring (ceramic tiles, marble, wood, plastic material, and so on), especially in cases where speed of execution is required and the finished flooring needs high resistance to loads and heavy traffic, along with high thermal conductivity and extensive levelling density. Some substrate examples include:
    โ€ข concrete slabs and cement screeds;
    โ€ข anhydrite substrates; โ€ข heated floors;
    โ€ข existing concrete flooring, terrazzo tiles, natural stones, magnesite.
    โ€ข existing ceramic flooring with the substrates subject to priming with two-component Syntech RGS resin (consumption approximately 1.2 kilograms/m2) and casting of Floor Level HP Therm on wet resin.
    Also suitable for particularly stressed areas of application, such as foundations subjected to intense dynamic-vibrational stress.

    Allowed supports
    Concrete
    Tiles
    Floor screed
    Bricks
    Natural stones
    Preparation of supports
    The surfaces on which the product is to be applied must be cleaned of dust, free from contamination, paints, loose and crumbly parts, and so on. Adopt effective mechanical measures to remove residues that could impact upon product adhesion. On media with standard absorption, slightly wet the substrate with water to clean the surface and favour the bonding of Floor Level HP Therm. If the substrate is particularly absorbent, weak and crumbly or whereby it is not possible to slightly wet, prime the surfaces with the special aqueous resin dispersion Bond Plus, preferably spreading the product with a rigid-bristle brush to promote penetration into the base. In all cases where surfaces are primed with Bond Plus, the application of Floor Level HP Therm must take place โ€œwet-on-wetโ€ immediately after the first priming โ€” with a consumption of Bond Plus at about 200 grams/square metres. On non-absorbent, vitrified, ceramised bases โ€“ such as ceramic or klinker tiles โ€“ prime surfaces with the bicomponent Syntech RGS resin (with a consumption of 1.2 kilograms/m2) and apply Floor Level HP Therm onto the resin whilst still fresh. Floor Level HP Therm is pumpable but, since the product has accelerated grip, the casting must be continuous and without interruption (with the pump to be entirely emptied before any stoppage to the pumping lasting more than 10 minutes).
    Mode of use
    Mix with a triple-helix paddle with a high rotational count or with a vertical axis mixer. Put 2/3 of the total water for the mixture into the mixer, gradually adding the product and the remaining water, stirring for about 2โ€“3 minutes until obtaining a homogeneous mixture with castable consistency. The mixture must contain from 18% to 20% water by weight (from 4.5 litres to 5.0 litres per 25-kilogram bag). Strain the mixture thus obtained onto the substrate and spread with a rubber blade, standard metal putty knife or toothed trowel (angled to obtain the desired thickness). Thanks to its perfect self-levelling characteristics, Floor Level HP Therm immediately fills the grooves left by the toothed trowel and eliminates small imperfections caused by its passage (trowel markings). Finish the adjustment and smoothing operations within 20 minutes. The product has accelerated grip and hardening, meaning there should be no pause between mixing and application. The product cures in around 45 minutes and is walkable after a few hours.
    Application methods
    Spatula
    Notched finishing trowel
    Straight edge
    Tool cleaning
    Water
    Key features
    Max. recommended thickness
    Max. recommended thickness: 30 mm
    Maximum diameter of aggregate
    Maximum diameter of aggregate: 0.5 mm
    Min. recommended thickness
    Min. recommended thickness: 3 mm
    Mix with water
    Mix with water: 20 %
    Pot-life
    Pot-life: 20 min
    Shelf-life
    Shelf-life: 12 months
    Temperature of use
    Temperature of use: +5/+35 ยฐC
    UV-resistant
    UV-resistant
    Technical specifications

    Compressive strength after 1 day
    EN 12190

    > 4 MPa

    Compressive strength after 28 days
    EN 12190

    > 38 MPa

    Flexural strength at 1 day
    EN 196

    > 3 MPa

    Flexural strength after 28 days
    EN 196

    > 9 MPa

    Static elastic modulus
    EN 13142

    22000 MPa

    Permeability to water vapor

    40

    Capillary absorption
    UNI EN 13057

    0.35

    Density
    UNI EN 1015-6

    2150 MPa

    pH

    > 12

    Thermal conductivity
    EN ISO 10456

    1.60 W/mK

    Chloride content
    UNI EN 1015-17

    < 0.01 %

    Setting time

    40-60 min

    Bonding force
    EN 1015-12

    > 2 MPa
    Consumption
    Approximately 1.8 kilograms/square metre of Floor Level HP Therm is needed for every millimetre of thickness to be achieved.
    Available colors
    Gray
    Packaging and dimensions

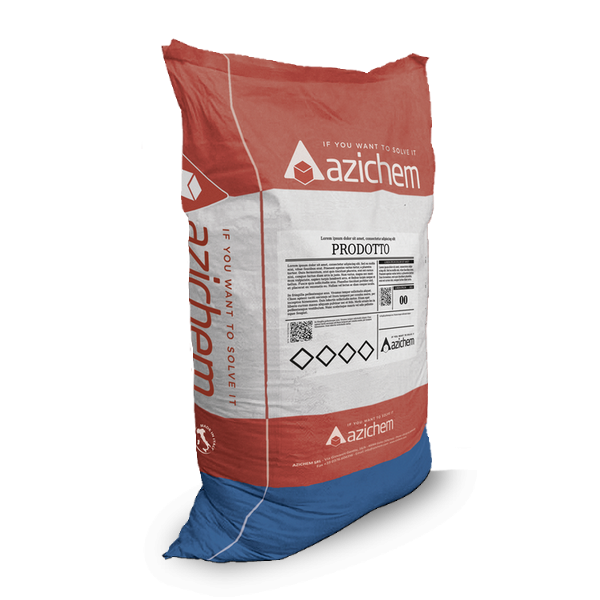

    Bag 25 kg
    Storage and conservation
    Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
    Additional content

    Warnings
    The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
    Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.

    Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
    Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.

    The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.

    Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
    It is forbidden to dispose of the product and/or packaging in the environment.
