Claytex

Waterproofing sodium bentonite geotextile

Flexible waterproofing geotextile for active waterproofing of underground structures, containing a uniform layer of granular sodium bentonite, with a high montmorillonite content, equal to 5.0 kg/m², consisting of a needled geotextile fabric with nylon fibres interfaced with non-woven geotextile in weight 100%. Claytex are supplied in two different sizes: Claytex 120 = rolls of 1.20 x 5 m (6 m²), weighing approximately 32 kg per roll and Claytex 250 = rolls of 2.50 x 20 m (50 m²), weighing approximately 270 kg per roll.
Components
Single-component
Appearance
Roll
Customs code
5911 9099

Request product info

    By submitting I agree to the privacy notice

    Obtained Certifications and Regulations
    EN 13491
    Lines of belonging
    Linea prodotto Aqua
    Linea prodotto Building
    Linea prodotto Floor
    Linea prodotto Infratech
    Linea prodotto Sanageb
    Thematic site
    ProSeal
    Features and benefits
    Where it is used
    How to use
    Technical data
    Additional content
    Warnings and precautions
    Media

    Claytex

    The products of the Claytex line consist of natural sealants activated by water, with strong self-sealing properties. Their bentonite layer is continuous and uniform. The porosity of the protective and containment sheets is aimed at allowing a quick and proper hydration of the hydro-expansive material.

    The bottom geotextile layer of the Claytex products is made of polypropylene fabric of 115 g/m², while the upper geotextile layer is made of nonwoven polypropylene of 220 g/m².

    Fields of application
    Waterproofing of underground structures in general, in the presence of groundwater risk. Waterproofing of waters containment basins, water channels and landfills.
    Allowed supports
    Plasters
    Concrete
    Cement-based or lime-based mortars
    Bricks
    Tuff
    Mixed walls (bricks and stones)
    Stone walls
    Preparation of supports
    The surfaces of the application walls must be free of protrusions, cavities, gravel pockets, through holes for formworks, discontinuities from construction joints etc. For this reason, they should be preliminarily reclaimed with anti-shrinkage mortar (REPAR family) or with bentonite-based preparations (Claygrain). The support must absolutely be compact, otherwise it will be necessary to pre-create a suitable concrete subbase upon laying the bentonite sheet.
    Mode of use

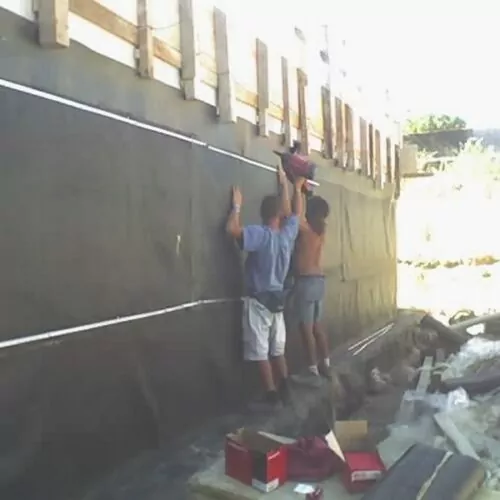

    The geotextiles should be placed with the polypropylene side facing the support (the darker side) and fixed by anchor nails with washers; in vertical walls, the installation must proceed from the bottom, after having made a suitable cement mortar cove, to be made preferably with Osmocem 447, at the corners produced between the base slab and the elevation wall, in order to facilitate laying the sheet.
    Each mat must overlap with the adjacent one by at least 10 cm, arranged to ensure the vertical joints are staggered. It is essential to ensure the mats have an appropriate flap at the geometric discontinuity of the work, of the top of the structures etc. Pay particular attention to laying the bentonite sheets at the corners, wells, stairs, and reinforcement rods protruding from the floor slab.
    Avoid proceeding with concrete covering works of bentonite mats in anticipation of heavy rains. In the impossibility of a timely backfill it is necessary to provide for the temporary protection of mats with polyethylene geotextiles of 100-150 g/m².
    In case bentonite geotextiles have been installed outside the perimetral brickwork, do not backfill the excavation with material other than sand (sharp rocks, crushed by the weight of dry aggregates, could tear the bentonite sheet).
    For more information please contact our Technical Service.

    Key features
    Material 100% eco-friendly
    Material 100% eco-friendly
    Shelf-life
    Shelf-life: 12 months
    Technical specifications

    Breaking load longitudinal
    ASTM D 6768

    17.7 kN/m

    Peeling
    ASTM D 6496

    662 N/m

    Swelling rate
    ASTM D 5890

    30

    Dry thickness
    EN ISO 9663-1

    6.5 mm

    Bentonite mass per area unit
    ASTM D 5993

    5.1 kg/m²

    Coefficient of permeability
    EN 16416

    < 3.5 x 10E-12 m/s

    Fluid loss
    ASTM D 5891

    13 ml

    Longitudinal elongation at break
    ASTM D 6768

    18.6 %
    Consumption
    1.1 m²/m²: Use 1 m² of Claytex for every m² of surface to be covered, making sure to overlap the rolls by at least 10 cm at the edges of the mat to ensure permanent water tightness of the system.
    Available colors
    Beige
    Packaging and dimensions
    Claytex 120: 1 x (Roll 6 m²)
    Claytex 250: 1 x (Roll 50 m²)
    Storage and conservation
    Protect from freezing.
    Additional content

    Warnings
    The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
    Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.

    Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
    Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.

    The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.

    Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
    It is forbidden to dispose of the product and/or packaging in the environment.
