Waterstop with sodium bentonite and expanding rubber base
Preformed hydro-expansive sealing waterstop joint, for hermetic sealed construction joints in structures, walls and foundations, made with a mixture of sodium bentonite, expanding rubber and special aggregating polymers ("hydrocarbon" ). Clayseal 25.20 has a rectangular cross-section of 25x20 mm, packaged in rolls of 5 m each.
Components
Single-component
Appearance
Stripe
Customs code
4005 9100
Request product info
Lines of belonging
Thematic site
Features and benefits
Where it is used
How to use
Technical data
Additional content
Warnings and precautions
Media
Related products
Clayseal 25.20
Clayseal 25.20 is a simple and easy to apply sodium bentonite waterstop; it does not require any special preparations of the media, pre-shaped seats etc. It is easily fixed by nailing and does not require any special protection. In contact with water, it increases its volume through the formation of a stable colloidal system that guarantees the permanent hermetic sealing of the connection; the initial expansion is delayed through a retardant coating with respect to the first contact with water, to avoid deformations in the initial hardening phase of the fresh concrete.
Fields of application
Rigid construction joints (non-expanding) and connections with safe and permanent hydraulic seal.
Allowed supports
Concrete
Cement-based or lime-based mortars
Prefabricated concrete
Rock walls
Preparation of supports
Prepare the smoothest and most planar laying surface, using Repar Tix to compensate for any inhomogeneity, and accurately remove crumbling, non-adhering, powdery parts.
Mode of use

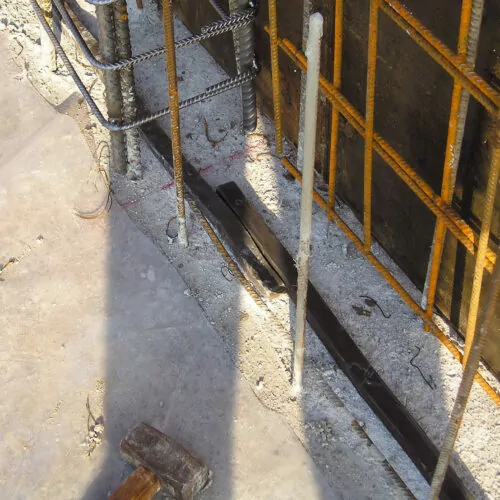

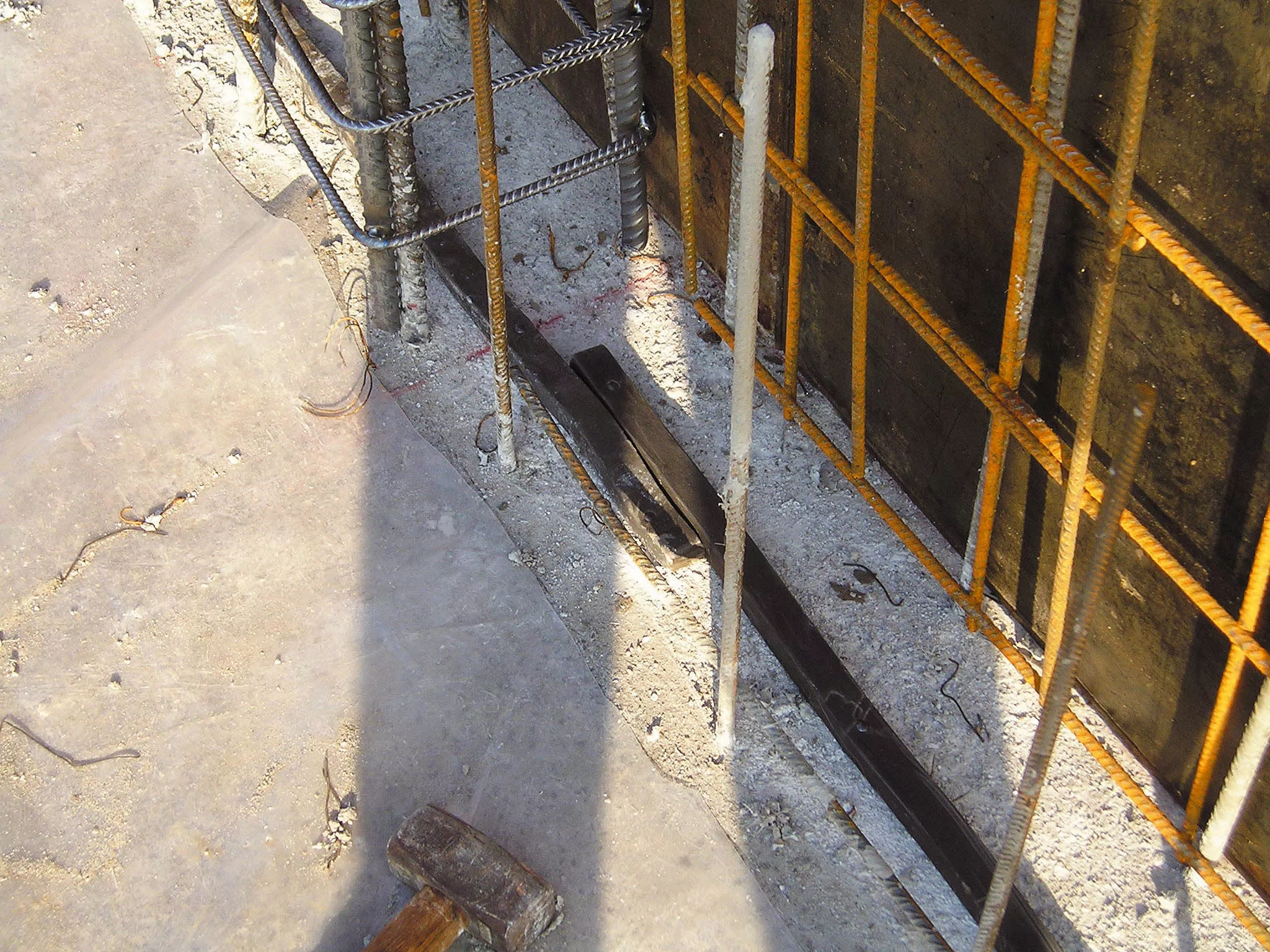

Hand spread the Clayseal 25.20 sodium bentonite waterstop in the designated position. Fixing is performed by nailing: one steel nail every 20-25 cm approximately. The sealing of joints between the waterstop kerbs is ensured by simple flanking by at least 10 cm and not by overlapping the ends.
For particularly complex applications, the specific Bentonet steel wire cage, with square mesh 13x13 mm, in profiles of 1 metre each, is available.

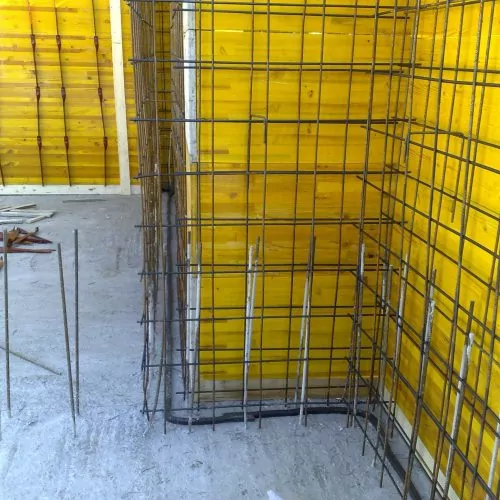

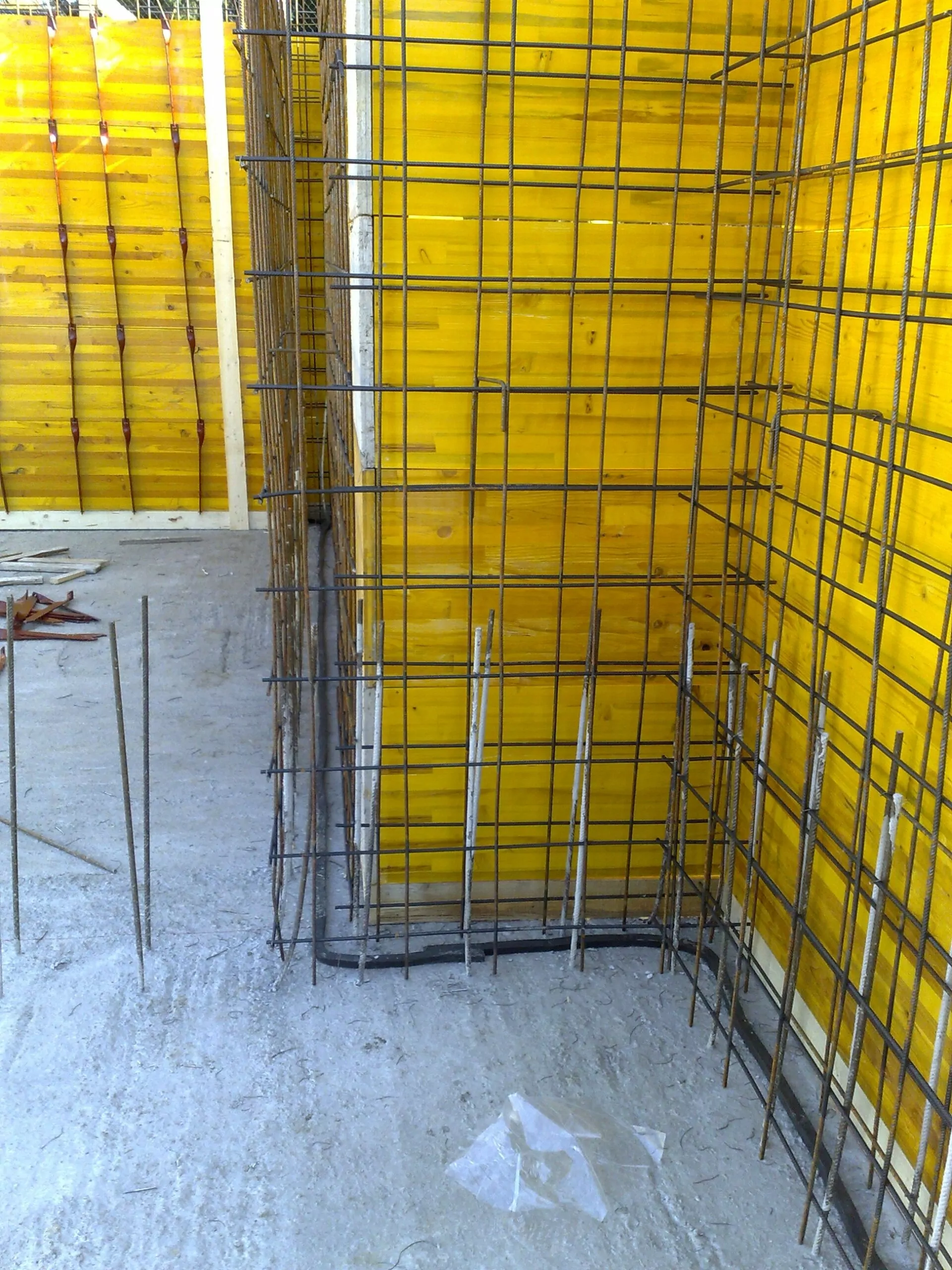

The positioning must ensure a concrete covering of 10-12 cm in order to contain the expansive action caused by hydration. Similarly, the formwork spacers should be placed in such a way as to maintain a minimum distance of 8 cm from the bentonite kerb itself.
Although the product has a delayed expansion of 48h, it is not recommended for use in cases of earlier time-frames or with excessive humidity (for example in the presence of puddles).
In case of groundwater with a high saline content or for leachate and waste water stops, carry out preliminary expansion tests or request the specific waterstop Clayseal 25.20 SW.
Application methods
Hammer
Apply by hand
Key features
Density: 1.4-1.5 kg/dmยณ
Hydroexpansive product: +350 %
Shelf-life: 12 months
Temperature of use: -15 / +50 ยฐC
Technical specifications
Sodium bentonite content
~70 %
Expansion after 7 days at pH 12.33
+110 %
Expansion after 7 days in demineralized water with pH~7
+250 %
Expansion after 10 days at pH 12.33
+128 %
Expansion after 10 days in demineralized water with pH~7
+350 %
Hydraulic leak test (14 days at 5 bar)
no leaks
Odorless
Unit weight ASTM D71
0.67 kg/m
Fire resistance DIN 4102-1
B 2
Longitudinal elongation at break
60 %
Consumption
1.1 m/m: Use 1 metre of Clayseal 25.20 for each linear metre, being careful to place 5-10 cm of the product alongside the end/start roll points to guarantee the permanent water tightness of the system.
Available colors
Black
Packaging and dimensions
Box: 6 x (Roll 5 m)
Pallet: 48 x (Box 21 Kg)
Storage and conservation
Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
Additional content
Extract from the experimental test report
There follows an extract of the remarks summarizing the experimental report of the test performed by the Laboratory Cismondi Srl of Cuneo, with code 135/CHI / 15/09/0252 del 06.04.2009:
Laboratory tests have shown that Clayseal 25.20 presents an increase in volume in contact with the water of 243.4 %; a value to be considered high and more than sufficient for the function it must fulfill. The surface of the sample remains smooth, compact and free of flaws. The concrete resists to expansion, thus Clayseal 25.20, compared to its high volume increase, will exert a good expansion pressure on site by preventing the permeation of the water at the points of casting. The increase in volume to a pH 12.33 is 110.4 %, a value greater than the smallest parameter of volume increase (100 % ). The surface of the sample remains smooth, compact and free of flaws. Clayseal 25.20 is a suitable product to be used in a basic environment, in contact with fresh concrete and cured).
Warnings
The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.
Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.
The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.
Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
It is forbidden to dispose of the product and/or packaging in the environment.
