Armaglass Corner 66

GFRP corner in glass yarn and pultruded epoxy resin

Angular element of monolithic GFRP mesh made with continuous filament glass fiber yarn bars and pultruded epoxy resin primer. The bars are intertwined with each other through a stitching thread, using a unique technology that allows the formation of joints between the longitudinal and transverse bars with high mechanical resistance. The epoxy resin guarantees the mesh high dimensional stability, alkali resistance and improves the mechanical characteristics. The composite has a square mesh of 66 mm side, ideal size for use with mortars for CRM reinforcement systems. The corner piece is a component of our RINFOR SYSTEM systems, which also include GFRP networks, gussets and connectors combined with our lime-based or cement-based mortars.
Components
Single-component
Appearance
GFRP angular
Customs code
7019 6100

Request product info

    By submitting I agree to the privacy notice

    Obtained Certifications and Regulations
    ETA - 23/0854
    Lines of belonging
    Linea prodotto Aqua
    Linea prodotto Floor
    Linea prodotto Infratech
    Linea prodotto Opus
    Linea prodotto Sanageb
    Thematic site
    Grout Power
    Where it is used
    How to use
    Technical data
    Warnings and precautions
    Fields of application

    To be used in combination with the Armaglass Structura 66 mesh for the reinforcement of masonry and concrete structures through the reinforced plaster technique (CRM system: Composite Reinforced Mortar).


    Preparation of supports

    To prepare the support, carefully follow what is indicated in the technical data sheets of the mortar with which Armaglass Corner 66 is combined.


    Mode of use

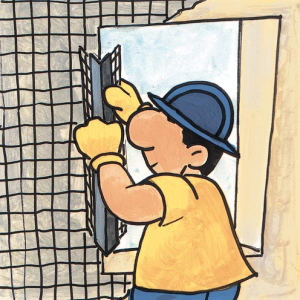

    Apply Armaglass Corner 66 in correspondence with all the corner areas of the reinforced plastering, in order to guarantee the structural continuity of the RINFOR SYSTEM reinforcement system.


    Key features
    Lenght
    Lenght: 1.05 m
    Unlimited shelf-life
    Unlimited shelf-life
    Use wearing protective gloves
    Use wearing protective gloves
    UV-resistant
    UV-resistant
    Width of the two sides
    Width of the two sides: 25 cm
    Technical specifications

    Unit weight

    350 g/m

    Mesh size

    66 x 66 mmยฒ

    Number of weft threads

    15 nr/m

    Number of warp threads

    15 nr/m

    Nominal diameter of single strand (weft)
    CNR-DT 203/2006

    3 mm

    Nominal diameter of single strand (warp)
    CNR-DT 203/2006

    4 mm

    Characteristic tensile load for single bar (warp)
    EAD 340392-00-0104

    6.9 kN

    Characteristic tensile load for single bar bent at 45ยฐ (warp)
    EAD 340392-00-0104

    4.9 kN
    Consumption

    Based on the total length of the corner areas.

    Available colors
    Black
    Packaging and dimensions
    Bulk material 1.05 m
    Storage and conservation
    Warnings
    The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
    Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.

    Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
    Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.

    The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.

    Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
    It is forbidden to dispose of the product and/or packaging in the environment.
