SEALGUM

Waterstop in hydro-expanding rubber

Code: PRS.0244

Components: 1

Appearance: Stripe

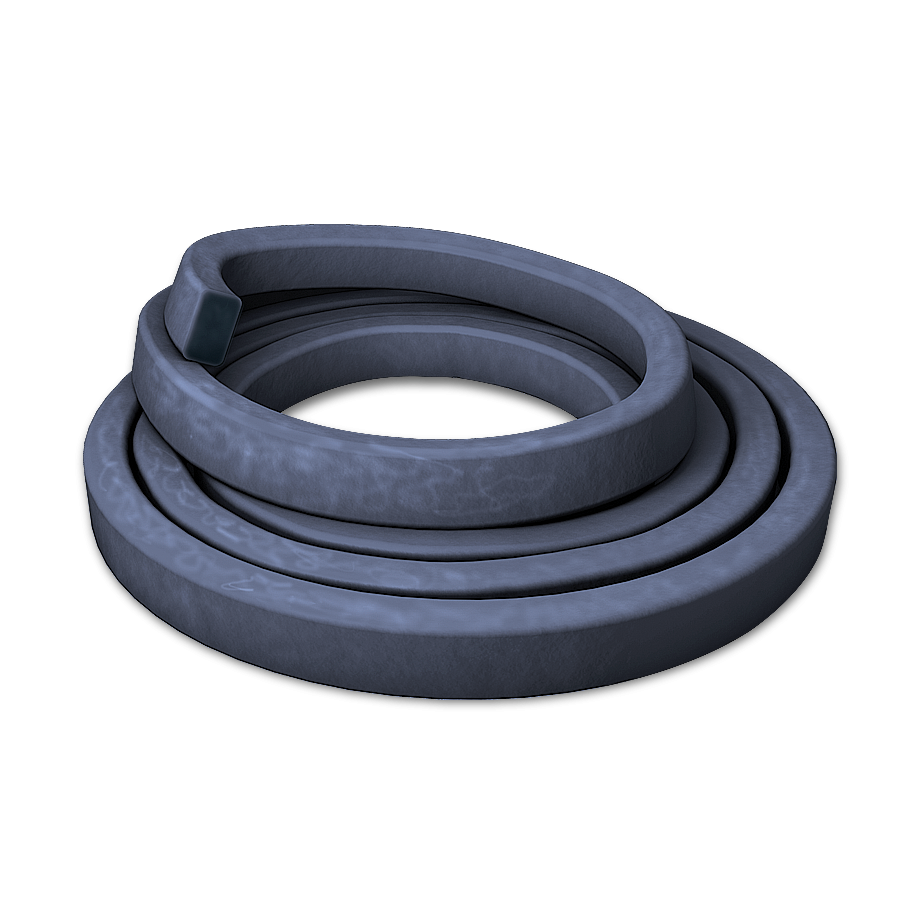

Hydro-expanding waterstop sealant with a special mix of natural and synthetic rubbers and hydrophilic agents: in contact with water, it increases up to triple its volume compared to the original size. SEALGUM is a simple waterstop easy to use, not requiring particular preparation on the supports, pre-shaped compartments, etc.. SEALGUM waterstops are available in three different sections: SEALGUM 20.05 = 20x5 mm; SEALGUM 20.10 = 20x10 mm; SEALGUM 20.20 = 20x20 mm.

Linee di appartenenza

General characteristics

density

Density: 1.26 kg/dm³

hydroexpansive-product

Hydroexpansive product: > 500 %

shelf-life

Shelf-life: 12 months

Technical specifications

Resistance to water pressure

5 bar

Fire resistance

B 2 _

Hardness

36 _

Available colours

- Blue

Packaging and dimensions

- Box: 5 x (SEALGUM 20.05 Roll 10 m)

- Box: 7 x (SEALGUM 20.10 Roll 10 m)

- Box: 7 x (SEALGUM 20.20 Roll 5 m)

- SEALGUM 20.05 Roll 10 m

- SEALGUM 20.10 Roll 10 m

- SEALGUM 20.20 Roll 5 m

Consumption

1.1 m/m: Use 1 metre of SEALGUM for each linear metre, being careful to place 5-10 cm of the product alongside the end/start roll points to guarantee the permanent water tightness of the system.

Use fields

Creation of castings and connections with safe and permanent hydraulic hold.

Preparation of supports

Take care to create the laying site of the waterstop as smooth and even as possible. Remove any flaking, inconsistent, dusty, etc. parts.

Use method

SEALGUM must be spread on the laying surface and fastened using nails (steel nails plus water approx. every 25 cm). Sealing of the joints is ensured by simple placement side by side and not overlapping the ends. Positioning must guarantee good coverage of 10-12 cm by the concrete, to contain the expansive action generated by hydration.

For particularly disconnected or rough surfaces, you can position SEALGUM with the help of a hydro-expanding sealant in a cartridge FLEXSEAL 300.

Application methods

- Apply by hand

- Hammer

Permitted supports

- Cement-based or lime-based mortars

- Concrete

- Prefabricated concrete

- Rock walls
