REPAR TIX GS

Rheoplastic, structural thixotropic cement mortar for extensive thicknesses

Code: REP.0352

Components: 1

Appearance: Powder

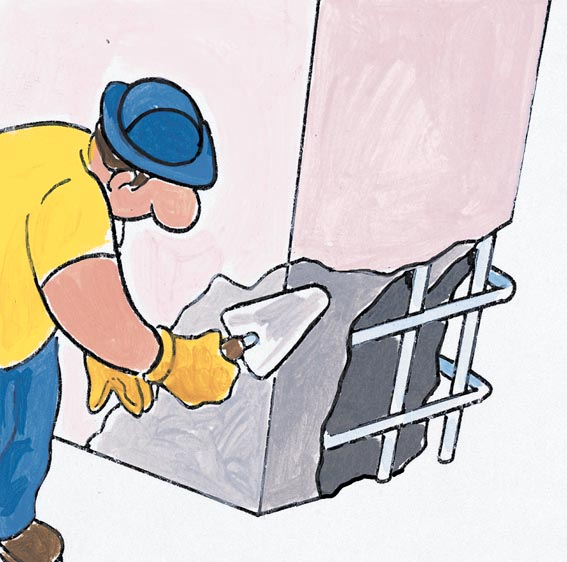

A structural and shrinkage-compensated thixotropic cementitious mortar with a maximum aggregate grain size of 5 mm, consisting of high-strength cements, super-pozzolanic fillers, stabilising additives and high-tenacity polypropylene microfibres. The coarse grain of the aggregate and the excellent workability of the mortar render REPAR TIX GS particularly suited to very thick volumetric structural restorations (with a depth of up to 50 mm per single coat applied) on reinforced concrete and masonry, even in environments with aggressive exposure (marine, industrial). It can be applied vertically or to the intrados of reinforced concrete structures, even of significant thickness, always in collaboration with the reinforcing rods, either manually or by spray, without the need for formwork and with wet curing for the first 48–72 hours.

Linee di appartenenza

General characteristics

maximum-diameter-of-aggregate

Maximum diameter of aggregate: 5 mm

min-recommended-thickness

Min. recommended thickness: 15 mm

shelf-life

Shelf-life: 12 months

pot-life

Pot-life: 60 min

max-recommended-thickness

Max. recommended thickness: 50 mm

nonflammable

Nonflammable

use-wearing-protective-gloves

Use wearing protective gloves

temperature-of-use

Temperature of use: +5 / +35 °C

mix-with-water

Mix with water: 14 %

uv-resistant

UV-resistant

Technical specifications

Flexural strength at 01 day

> 3.5 MPa

Flexural strength after 07 days

> 7.0 MPa

Density

2200 g/l

Water/binder ratio

0.38 _

pH

> 12.5 _

Compressive strength after 01 day

> 16 MPa

Compressive strength after 07 days

> 40 MPa

Capillary absorption

0.50 kg•h^0.5/m²

Darcy impermeability

1 x 10 E-10 cm/s

Flexural strength after 28 days

> 8.0 MPa

Compressive strength after 28 days

> 50 MPa

Bonding force

>2.0 N/mm²

Static elastic modulus

29.000 N/mm²

Available colours

- Gray

Packaging and dimensions

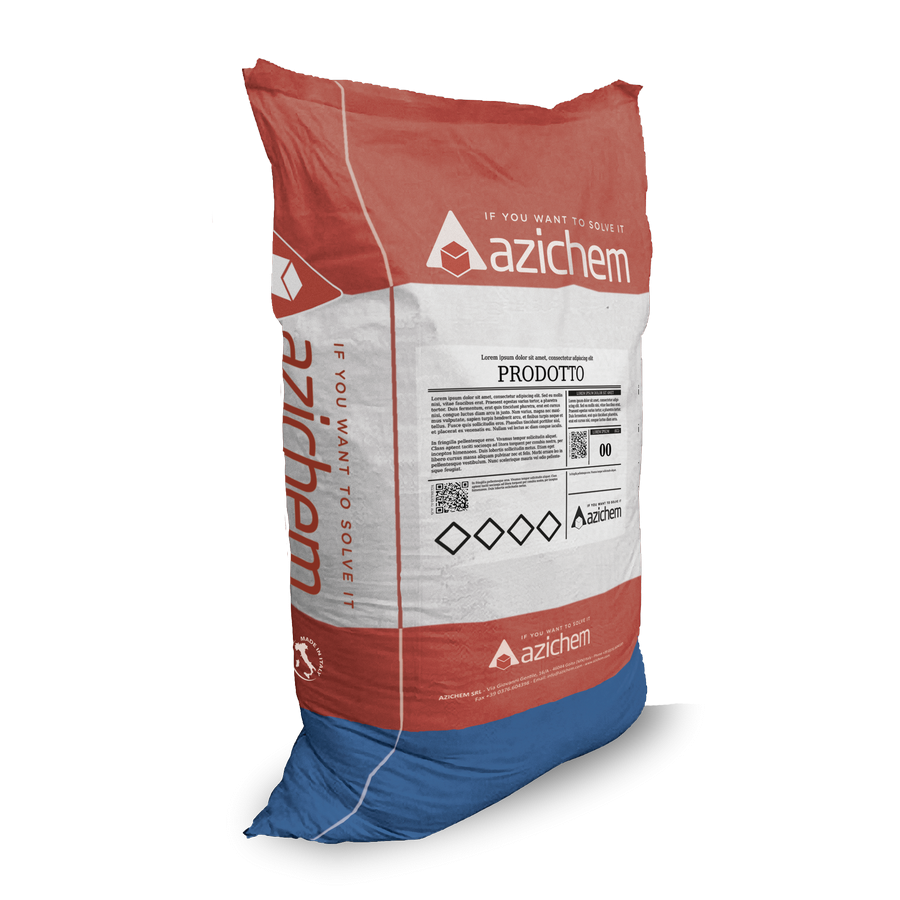

- Bag 25 kg

- Pallet: 50 x (Bag 25 kg)

Characteristics

REPAR TIX GS, the thixotropic structural mortar for significant thicknesses, can benefit from the addition of 0.25% of FLUID SRA, a special additive able to reduce both plastic and hydraulic shrinkage. FLUID SRA protects the curing of the mortar and, mixed with REPAR TIX GS, can be considered as a technologically-advanced system able to reduce the rapid evaporation of water from mortar and promote the development of hydration reactions. Thanks to the interaction with certain cement components, FLUID SRA reduces final shrinkage by 20 to 50% compared with the standard values of REPAR TIX GS prepared with the addition of water alone.

Consumption

Approximately 19 kg/m² of REPAR TIX GS for every centimetre of thickness to be implemented (approximately 1900 kg per cubic metre).

Use fields

For restorations, repairs, structural reclamations, reconstruction of concrete coverings, and the construction of reliable and durable coatings for construction, civil, hydraulic, industrial, concrete and masonry works in the event of extensive-thickness restorations.

Preparation of supports

The applicative surfaces must be clean, free from contamination or any loose or detached parts, dust, and so on, suitably watered down until it is “saturated with a dry surface”. An adequate roughening of the surfaces by scarifying, sandblasting etc. is always necessary in order to obtain the maximum adhesion values to the substrate. The optimal values are obtained with high pressure hydro-scarification. Bare the irons undergoing disruptive oxidation or deeply oxidized, removing the rust of the exposed irons (by sandblasting or abrasive brushes). It is recommended to apply CONSILEX SAN consolidating realkalising agent to exposed surfaces in advance, prior to their restoration.

Use method

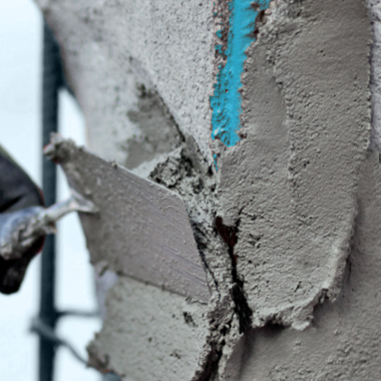

Add two-thirds of the total mixing water (about 2.5 litres per bag) to the concrete mixer then gradually add the product and the remaining water until obtaining the desired mixture with a homogeneous consistency free from lumps. Ensure exposed surfaces are protected and wet-cured.
Adding BOND HG to the mixing water (about 0.5-0.7 kg per bag of product) offers significant improvements in terms of adhesion, adherence, waterproofing, workability, malleability and deformation capacity.

Application methods

- Brick trowel

- Finishing trowel

- Plastering machine

- Shotcrete machine

- Spatula

Tool cleaning

- Water

Permitted supports

- Bricks

- Concrete

- Mixed walls (bricks and stones)

- Prefabricated concrete

- Rock walls

- Stone walls
