Code: REP.0126
Components: 1
Appearance: Powder
Cement slurry in monocomponent powder, passivating, light blue in colour, to be added with water, modified with superpozzolanic agents, flexibilising resins and corrosion inhibitors, for the passivating treatment of oxidised reinforcing rods, in the restoration of degraded concrete.
EN 1504-7
Products and systems for the protection and repair of concrete structures. Reinforcement corrosion protection
EN 998-1
Specification for Mortar for Masonry - General purpose rendering/plastering mortar (GP)
Highlighted product
Mix with water: 32-40 %
Nonflammable
Shelf-life: 12 months
Temperature of use: +5 / +35 °C
Use wearing protective gloves
Compressive strength after 28 days
30 MPa
Concrete adhesion (direct traction)
* 2.4 N/mm²
Darcy impermeability
1 x 10 E-10 cm/s
Density
1700 kg/m³
Flexural strength after 28 days
6 MPa
pH
> 12 _
Water/binder ratio
< 0.45 _
- Light blu
- Pail 2.5 kg
- Pail 5 kg
- Bag 25 kg
The anti-corrosive effectiveness of REPAR MONOSTEEL results from the high alkalinity and from the superpozzolanic reactivity of components. The specific corrosion inhibitor contained in the compound (DCI - Corrosion Inhibitor Agrèment Certificate BBA** n.96/3232), conforming to the standard UNI 9747, is based on a reaction which is capable of making unavailable the ferrous ions for the supply of the electrochemical processes of corrosion. The polymeric components of REPAR MONOSTEEL also determine further increases in the effectiveness against corrosion, especially vis-à-vis the aggressive attacks arising from chlorides and sulphates. (BBA = British Board of Agrèment).
From 0.02 to 0.07 kg of REPAR MONOSTEEL for each linear metre of steel bar to be treated.
Passivating protection treatments of the reinforcement rods in interventions of restoration of works and articles in reinforced concrete, in marine, mountain and industrial environments.
Carefully remove non-adhering rust, present on the metal surfaces of the exposed reinforcement rods by blasting or deep brushing , until the following condition is reached: "almost white metal" (metal colour as if it has just come out of extrusion).

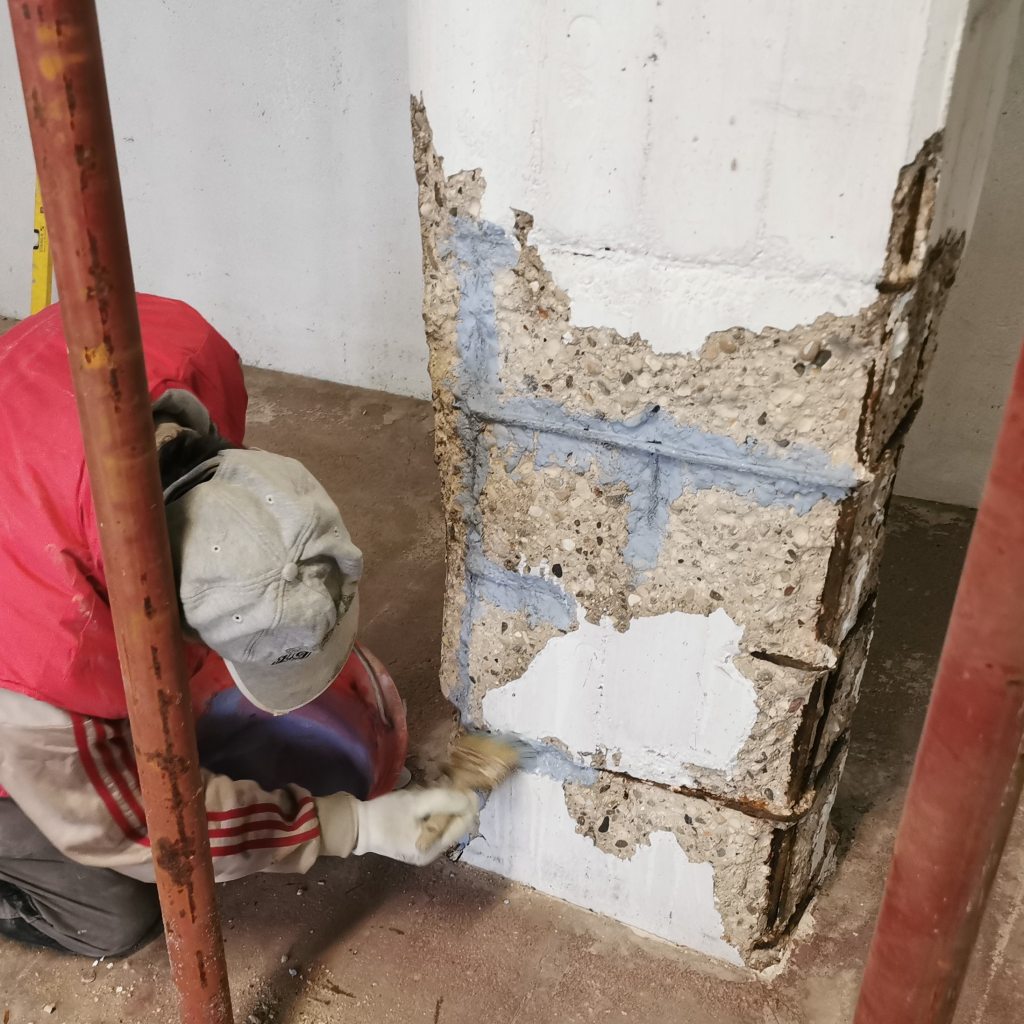

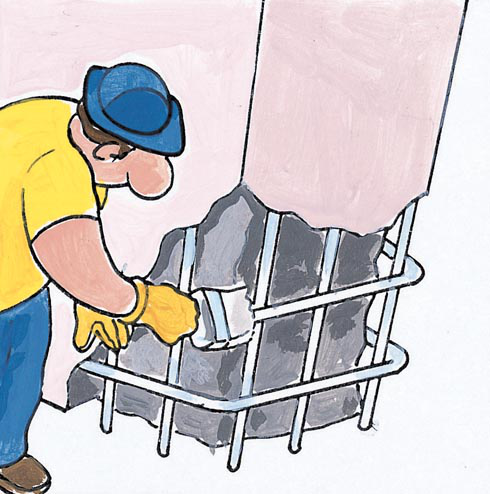

Pour about half a litre of water into a bucket, add REPAR MONOSTEEL and additional water necessary for achieving a fluid, dense, brushable consistency. Continue mixing until a homogeneous lump-free mixture is obtained. Apply by brush on the surfaces of the previously prepared reinforcement rods.
- Brush
- Water
- Concrete
- Rusty reinforcement rods
The overflow of the product on the concrete adjacent to the treated rids does not entail any problem.
Products cycle to repair concrete structures with cast mortar, with the "block" concrete technique, suitable for medium to large building sections.
Repair, restoration and renewal of concrete structures degraded due to the effects of time or the weather, by applying fibre-reinforced cement mortar, shrinkage-compensated and self-sustaining (thixotropic effect)
Volumetric reconstruction cycle and repair of works and structures in highly degraded concrete in aggressive environments such as marine, mountain and industrial environments.
Want to know more about our products?
