READYMESH MX-500

High performance 50mm steel fibres

Code: RDM.0220

Components: 1

Appearance: Fibers

READYMESH MX-500 is a special carbon steel fibre, obtained by the extrusion and cutting of high-strength steel wire. Its special double-hooked form gives it a remarkable shear strength, thus conferring the concrete with excellent post-cracking structural strength even at low doses. READYMESH MX-500 significantly increases the mechanical performance of the structure in terms of toughness, ductility, fatigue, dynamic stress, shock, wear, tensile and shear strength and even post-cracking and damage behaviour.

Customs Code

7326 2000

Linee di appartenenza

Certification obtained and Standards

EN 14889-1:2006 (System 1)

Fibres for concrete - Steel fibres - Definitions, specification and conformity

General characteristics

Unlimited shelf-life

Density: 7.8 kg/dm³

Diameter: 0.75 mm

Lenght: 50 mm

Use wearing protective gloves

Double hook geometry

UV-resistant

Technical specifications

Breaking load longitudinal

1100 N/mm²

Static elastic modulus

210000 N/mm²

Linear development

3270 m/m³

Nominal length

50 mm

Effective length

54.5 mm

Number of filmanets

5000 nr/kg

Non-toxic material

Aspect ratio (l / d)

67 _

Available colours

- Steel

Packaging and dimensions

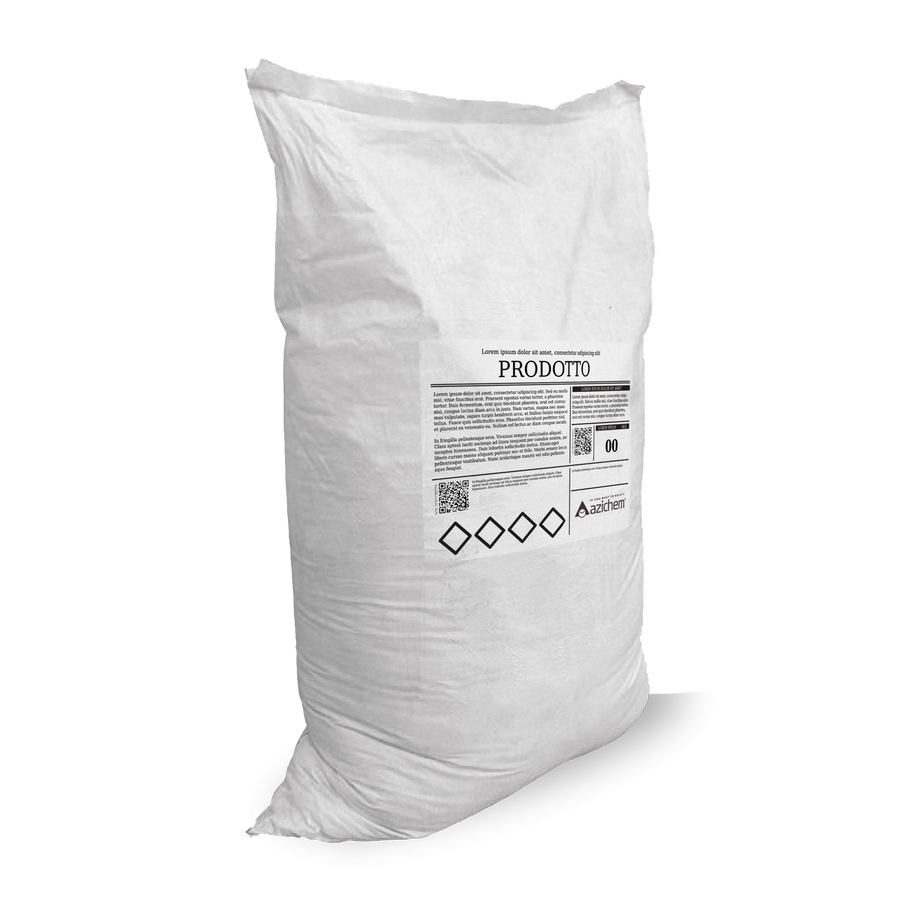

- Bag 20 kg

- Pallet: 50 x (Bag 20 kg)

Consumption

Variable according to the type of work to be carried out and/or performance to be achieved.

Use fields

General preparation of fibre-reinforced concrete with high pre and post-cracking performance. Ideal for industrial flooring and prefabrications.

Use method

"READYMESH MX-500 fibres must be added to the concrete during mixing. It is recommended to pour the fibres directly onto the loading belt of the concrete mixer during the loading of the aggregates. Alternatively, it is possible to add them directly into the mixer after loading the concrete. In this case, add the fibres a little at a time so that they are well-distributed in the cement mix and extend the mixing time by at least one minute for every 20 kg of fibres added in order to achieve optimal distribution.

Conglomerates with READYMESH MX-500 can be easily transported and used with pumps, joiners, vibratory finishing machines, roadway extruders (e.g. slipform paver), etc."
