READYMESH MF-500

Structural steel fibres for concrete flooring

Code: RDM.0212

Components: 1

Appearance: Fibers

"Carbon steel fibres, obtained by the cutting of metal wire, with improved adhesion profile, for three-dimensional general structural reinforcement of cement-based conglomerates. The addition of READYMESH MF-500 significantly increases the mechanical performance of the structure in terms of toughness, ductility, fatigue, dynamic stress, shock, wear, tensile and shear strength and even post-cracking and damage behaviour."

Linee di appartenenza

Certification obtained and Standards

Fibres for concrete - Steel fibres - Definitions, specification and conformity

EN 14889-1:2006 (System 1)

Fibres for concrete - Steel fibres - Definitions, specification and conformity

General characteristics

density

Density: 7.8 kg/dm³

diameter

Diameter: ~1.05 mm

highlighted-product

Highlighted product

hooked-geometry

Hooked geometry

lenght

Lenght: 50 mm

unlimited-shelf-life

Unlimited shelf-life

use-wearing-protective-gloves

Use wearing protective gloves

uv-resistant

UV-resistant

Technical specifications

Aspect ratio (l / d)

50 _

Breaking load longitudinal

1100-1400 N/mm²

Effective length

52 mm

Effects on the consistency of fresh concrete (Vebè)

9 s

Linear development

3770 m/m³

Nominal length

50 mm

Non-toxic material

Number of filmanets

~2900 nr/kg

Static elastic modulus

210000 N/mm²

Available colours

- Steel

Packaging and dimensions

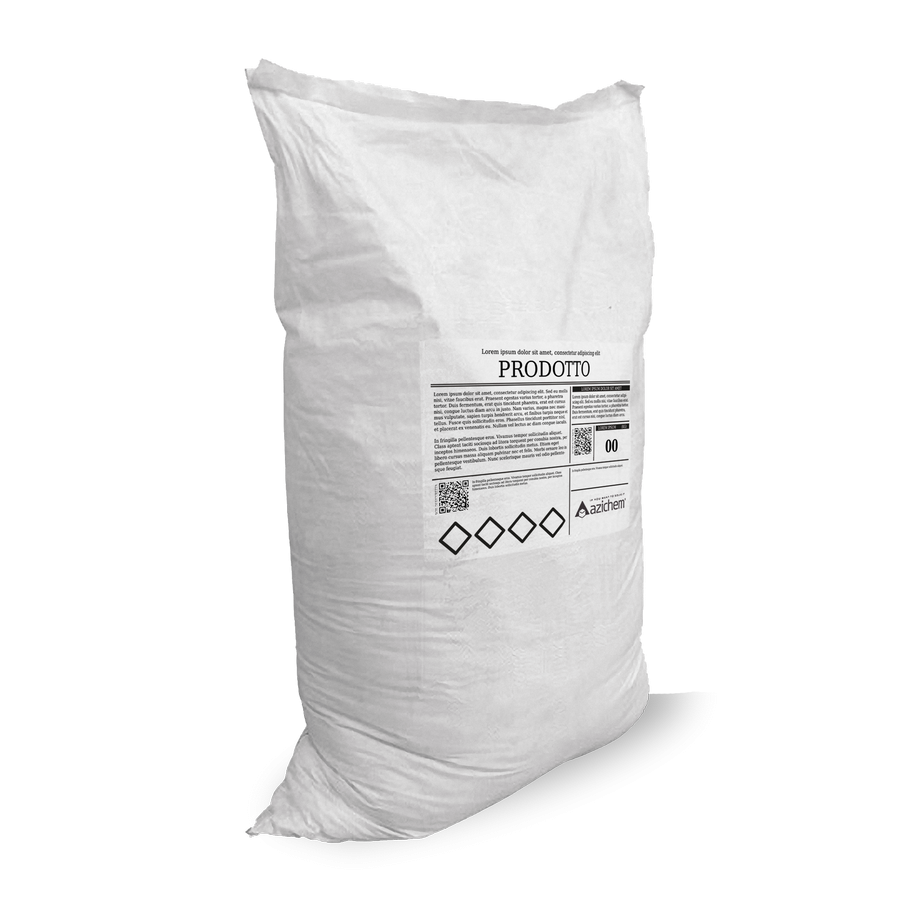

- Bag 20 kg

- Pallet: 50 x (Bag 20 kg)

Consumption

Variable according to the type of work to be carried out and/or performance to be achieved.

Use fields

General preparation of fibre-reinforced concrete and structural sprayed concrete (e.g. shotcrete). Particularly suitable for high strength industrial flooring and prefabrication.

Use method

"READYMESH MF-500 fibres must be added to the concrete during mixing. It is recommended to pour the fibres directly onto the loading belt of the concrete mixer during the loading of the aggregates. Alternatively, it is possible to add them directly into the mixer after loading the concrete. In this case, add the fibres a little at a time so that they are well-distributed in the cement mix and extend the mixing time by at least one minute for every 20 kg of fibres added in order to achieve optimal distribution.

Conglomerates with READYMESH MF-500 can be easily transported and used with pumps, joiners, vibratory finishing machines, roadway extruders (e.g. slipform paver), etc."

Application methods

- To be added to other components

Permitted supports

- Concrete

- Prefabricated concrete

Warnings, precautions and Ecology

Improper addition of the fibres to the cement mix may cause substantial alterations to the mechanical performance of the concrete itself.
