OSMOCEM N

Mono-component, osmotic, rigid waterproofing cement

Code: OSM.0086

Components: 1

Appearance: Powder

Cement compound for the preparation, with the sole addition of water, of a waterproofing osmotic coating that can create horizontal and vertical barriers, also suitable in conditions of negative hydrostatic thrust vis-à-vis water permeation in the buildings. Typical uses include waterproofing underground rooms, elevator compartments, garages, basements, tanks, etc.

Customs Code

3824 5090

Linee di appartenenza

Certification obtained and Standards

EN 998-1

Specification for Mortar for Masonry - General purpose rendering/plastering mortar (GP)

D.M. 06/04/2004, n. 174

Regulation concerning materials and objects that can be used in fixed systems for the collection, treatment, adduction and distribution of water intended for human consumption (in implementation of Directive 98/83/CE).

General characteristics

Maximum diameter of aggregate: < 0.4 mm

Min. recommended thickness: 1 mm

Shelf-life: 12 months

To be applied in two coats

Max. recommended thickness: 5 mm

Suitable for contact with drinking water

Pot-life: 60 min

Temperature of use: +5 / +35 °C

Mix with water: 19-22 %

Technical specifications

Permeability to water vapor

CLASS i _

Setting time

3 h

Waterproof to negative hydraulic thrust with a pressure of 1.5 bar

Flexural strength after 28 days

> 8 N/mm²

Density

1930 kg/m³

Capillary absorption

0.08 kg•h^0.5/m²

Compressive strength at 02 days

> 20 N/mm²

Compressive strength after 07 days

> 30 N/mm²

Bonding force

1.8 N/mm²

Resistance to positive hydraulic thrust: water penetration depth with 5 bar pressure

1-2 mm

Compressive strength after 28 days

> 40 N/mm²

Available colours

- Gray

- White

Packaging and dimensions

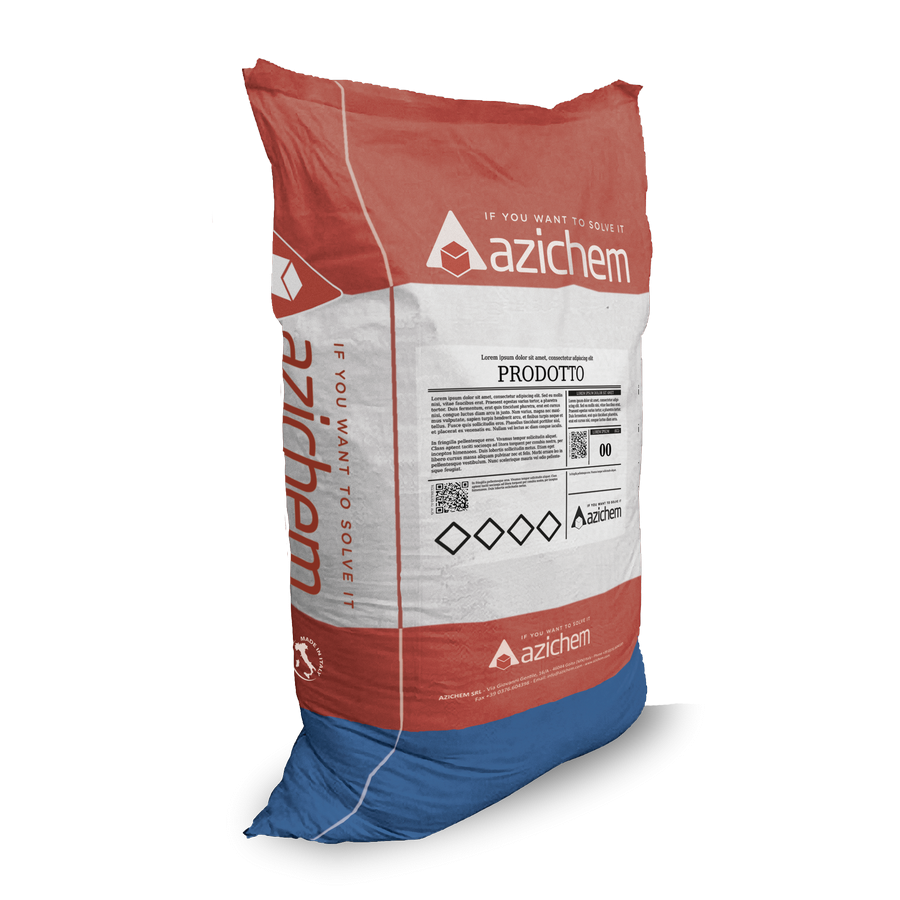

- Bag 25 kg

Characteristics

The action of the active components and of the adhesion promoters of OSMOCEM N, saturated by the reaction the support capillaries, forming a complex system of gel and stable crystals, which results in the best sealing, effective even in conditions of negative hydrostatic thrust, without hindering the breathability of the walls.

OSMOCEM N is compatible for food substances: is certified as suitable for the containment of foodstuffs and drinking water (Certificate no. 02/2010 Laboratorio Analysis Service di Settimo di Pescantina - VR).

OSMOCEM N waterproof test:
• Resistance to positive hydraulic thrust, UNI EN 12390/8: water penetration depth with 5 bar pressure = 1-2 mm (*)
• Impermeability to negative hydraulic thrust, UNI EN 12390/8 modified (concrete support a / c ratio 0.7): no passage of water with a pressure of 1.5 bar

(*) concrete with penetration depth <= 20 mm are considered waterproof

Consumption

Approximately 1.7 kg/m² of OSMOCEM N for each millimetre of thickness to be made.

Use fields

Waterproofing rigid structures and masonry walls underground, buried or in any case subject to water permeation: lift wells, basements, tanks, pipes, tunnels, garages, bridges, reservoirs, areas containing food, etc. in conditions of positive and negative hydrostatic thrust provided they are sufficiently porous and absorbent and free from any waterproofing and / or water-repellent surface treatment, whether chemical (siloxanes, epoxies, polyurethanes, etc.) or natural (wax-up).

Preparation of supports

Application surfaces should be clean, free of soiling, crumbling and non-adhering parts, dust, etc., water repellent treatments in general, etc. conveniently saturated with water until they reach the condition "saturated with dry surface".

Use method

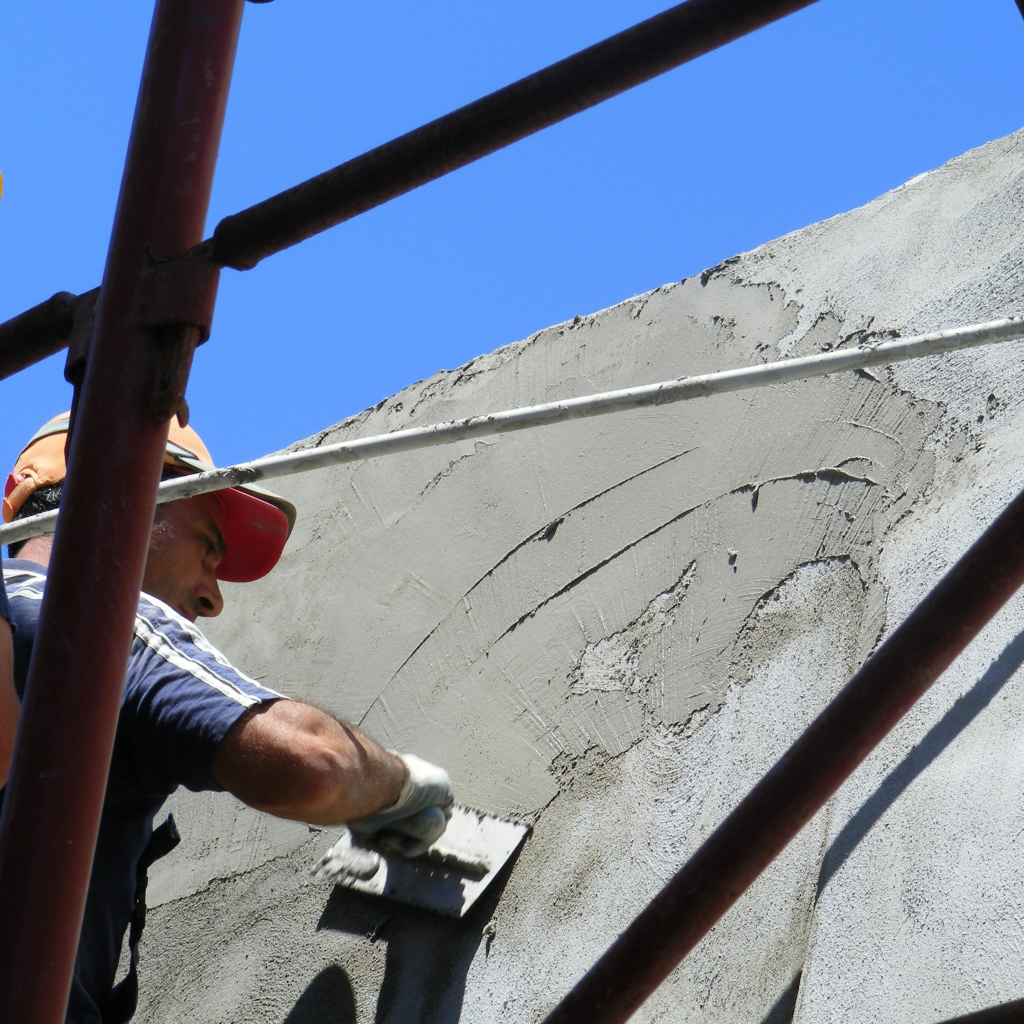

Pour about 2/3 of the mixing water into the mixer, add OSMOCEM N and the remaining water; continue to mix until a homogeneous lump-free mixture is obtained. The mixing water should be about 19-20% (for interventions in the form of a spatula) or 21-22% (for interventions using a brush with long bristles). After mixing is completed wait a few minutes before applying. If applied by brush, roll out two or more crossed coats.

Although it is not a specific product for finishing thick coats, it can still be used for these purposes. In these cases, it is appropriate to use a fibreglass mesh ARMAGLASS 160.

Application methods

- Brush

- Finishing trowel

- Plastering machine

- Spatula

- Sprayer

Tool cleaning

- Water

Permitted supports

- Bricks

- Concrete

- Fiber-cement

- Mixed walls (bricks and stones)

- Prefabricated concrete

- Rock walls

- Stone walls

Warnings, precautions and Ecology

It is always essential to carry out preliminary tests to verify the appropriateness of the product, depending on specific requirements.

Do not apply in case of direct exposure to sunlight and cure the protection and moist hardening.
Do not apply on little or non-porous substrates or previously coated with water-repellent treatments in general, if not after appropriate roughening by bush hammers, sanders and equipment suitable for preparatory treatments of substrates, or after appropriate treatment with suitable polymeric primers.
