OSMOCEM FLEX
Plasto-elastic waterproofing cement for terraces and masonry
Code: OSM.0084
Components: 2
Appearance: Liquid + Powder
A two-component osmotic cementitious waterproofing agent in water dispersion, being a modified polymer that is highly flexible and deformable, with a plastic-elastic conduct. Application by trowel, brush or roller. Ideal for waterproofing terraces, balconies and swimming pools, prior to laying the tiled or brick coating. Suitable for contact with drinking water.
Range
Functional categories
Customs Code
Linee di appartenenza
Certification obtained and Standards
EN 998-1
Specification for Mortar for Masonry - General purpose rendering/plastering mortar (GP)
EN 1504-2
Products and systems for the protection and repair of concrete structures - Surface protection systems for concrete
D.M. 06/04/2004, n. 174
Regulation concerning materials and objects that can be used in fixed systems for the collection, treatment, adduction and distribution of water intended for human consumption (in implementation of Directive 98/83/CE).
General characteristics
Mixing ratio: 3:1 _
Maximum diameter of aggregate: < 0.4 mm
Shelf-life: 12 months
Pot-life: 60 min
Suitable for contact with drinking water
Temperature of use: +8 / +30 °C
Technical specifications
Permeability to water vapor
CLASS I _
Mixing ratio of the components
3:1 _
Density
1800 kg/m³
Capillary absorption
0.06 kg•h^0.5/m²
Longitudinal elongation at break
17.2 %
Bridging capacity on wide cracks
0.5-1.0 mm
Bonding force
1.50 N/mm²
Available colours
- Gray
- White

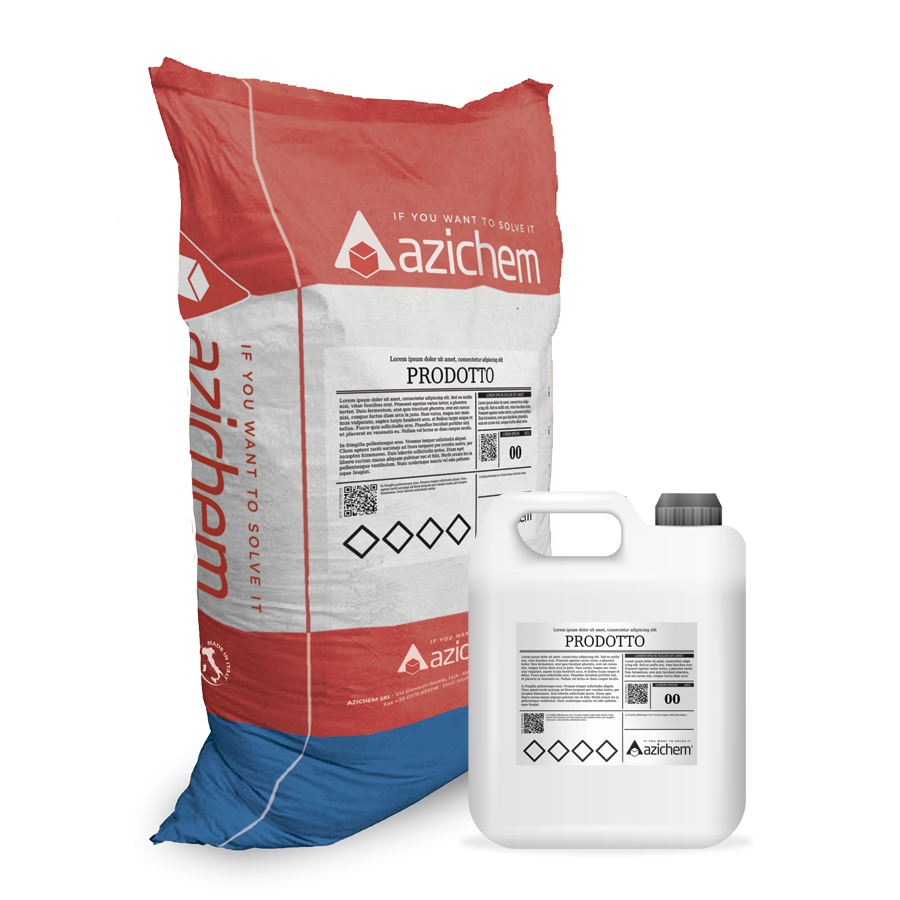

Packaging and dimensions
- Bag 24 kg [A]
- Kit: 1 Bag 24 kg [A] + 1 Plastic can 8 kg [B]
- Pallet: 50 x (Bag 24 kg [A])
- Pallet: 50 x (Plastic can 8 kg [B])
- Plastic can 8 kg [B]
Characteristics
OSMOCEM FLEX is certified for compatibility with contact and containment of drinking water and food substances (certificate n. 04/2010 of the Laboratorio Analysis Service di Settimo di Pescantina - VR).
Two-component professional product. Proportioning of component A + component B specially designed to give the installer certainty of the result and guarantee of impeccable work: the tank of component B (8 kg) contains slightly more compared to the quantity necessary for mixing the bag (24 kg), allowing the installer, before laying the product, to withdraw from the tank up to 1 lt of the special resin of component B, dilute with 1 lt of water and use this aqueous emulsion to prime the application support; in this way at least three extraordinarily effective operations are performed with a simple and rapid priming: a) expulsion of the air from the superficial porosity _fillers (with drastic reduction of the well-known blisters that occur on low thickness elastic products); b) reduction of the support absorption (to guarantee a suitable setting of the waterproof finish); c) increase in adhesion thanks to the deep penetration of the polymeric component.
Consumption
Approximately 1.8 kg/m² of OSMOCEM FLEX for each millimetre of thickness to be made.
Use fields
Moisture-proofing concrete containment works (tubs, swimming pools, pipes, ducts, areas containing food, etc.). Moisture-proofing balconies, terraces, bathrooms, showers, etc., prior to laying successive plasters and screeds, ceramic coatings provided they are sufficiently porous and absorbent and free from any waterproofing and / or water-repellent surface treatment, whether chemical (siloxanes, epoxies, polyurethanes, etc.) or natural (wax-up). Waterproofing coating of earth-retaining masonry, micro-cracked plaster. Deformable finishing coats in general.
Preparation of supports
Application surfaces should be clean and free of dust, soiling, crumbling and non-adhering parts, etc., water repellent treatments in general, etc. conveniently saturated with water until they reach the condition "saturated with dry surface". It is always advisable to prime the application support with approximately 100-150 g / m2 of COMPONENT B adhesive latex; in this way, at least three extraordinarily effective operations are carried out with a simple and fast priming: a) expulsion of the air from the surface porosity _ stopper (with a drastic reduction of the well-known blistering that occurs on elastic products with low thickness); b) decrease in the absorption of the support (to guarantee a suitable curing of the waterproof skim coat); c) increased adhesion thanks to the deep penetration of the polymeric component.
Any cracks from plastic or hygrometric shrinkage present should be preliminarily treated with appropriate products and techniques. In the case of extended coating surfaces you must provide appropriately placed "chimney flues" for venting steam.
Use method
OSMOCEM FLEX comes in two predosed components that must be thoroughly mixed, with mixers with a low number of revolutions (maximum. 300 Revs/minute) until a homogeneous lump-free mixture is obtained. The addition of other ingredients should be absolutely avoided. The tank of component B (8 kg) contains slightly more compared to the quantity necessary for mixing the bag (24 kg), allowing the installer, before laying the product, to withdraw from the tank up to 1 lt of the special resin of component B, dilute with 1 lt of water and use this aqueous emulsion to prime the application support (see also the ADDITIONAL INFORMATION section). In case of exceptionally arid climate, it is possible to make moderate consistency corrections, where necessary, adding water up to a maximum of 8%.

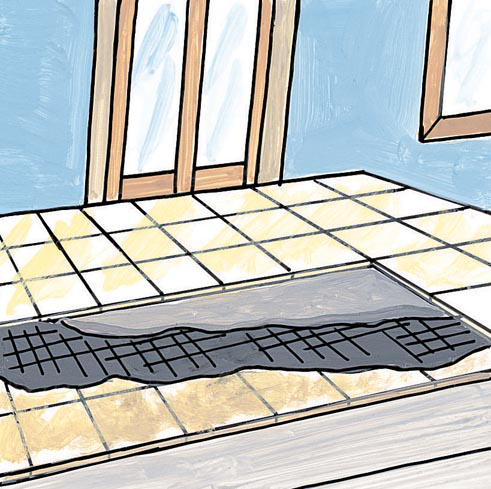

When waterproofing terraces and balconies, two coats, each about 1.5 mm thick (2.2 kg/m² per coat), of OSMOCEM FLEX should be applied, each coat should be applied when the previous one looks stable (at least 4 hours later at 20°C). It is recommended to interpose the fibreglass alkaline-resistant mesh ARMAGLASS 160 in the thickness of OSMOCEM FLEX, between the first and second coat. The self-adhesive butyl band PROBAND should also be placed between the floor screeds and the elevation walls. Finally, it is advisable to place the special elastic band ELASTOTEX 120 or ELASTOTEX 120 CLOTH, at any expansion joints, securing it with the same OSMOCEM FLEX.
Application methods
- Brush
- Paint roller
- Plastering machine
- Pump
- Scrubbing brush
- Spatula
Tool cleaning
- Water
Permitted supports
- Concrete
- Floor screed
- Tiles
Warnings, precautions and Ecology
Do not use OSMOCEM FLEX on strongly degraded or non-adhering supports , since it would reduce the waterproofing quality.
Do not apply on little or non-porous substrates or previously coated with water-repellent treatments in general, if not after appropriate roughening by bush hammers, sanders and equipment suitable for preparatory treatments of substrates, or after appropriate treatment with suitable polymeric primers.
