OSMOCEM D

Osmotic deformable two-component waterproofing cement

Code: OSM.0082

Components: 2

Appearance: Liquid + Powder

A two-component osmotic cementitious waterproofing in water dispersion, a modified polymer that is super adhesive, breathable and moderately deformable, being resistant to positive and negative thrusts. Application by trowel, brush or roller. Ideal for waterproofing reinforced concrete and masonry structures including tanks, water pipes, underground structures, lift shafts, flower boxes and hanging gardens. It also serves for repairs and protective coatings of structures offshore or those exposed to sea salt. Suitable for contact with drinking water.

Linee di appartenenza

Certification obtained and Standards

Specification for Mortar for Masonry - General purpose rendering/plastering mortar (GP)

EN 998-1

Specification for Mortar for Masonry - General purpose rendering/plastering mortar (GP)

Liquid waterproofing products to be applied beneath ceramic tiles, bonded with adhesives

EN 14891:2012 (System 3)

Liquid waterproofing products to be applied beneath ceramic tiles, bonded with adhesives

Products and systems for the protection and repair of concrete structures - Structural and non-structural repair

EN 1504-3

Products and systems for the protection and repair of concrete structures - Structural and non-structural repair

Regulation concerning materials and objects that can be used in fixed systems for the collection, treatment, adduction and distribution of water intended for human consumption (in implementation of Directive 98/83/CE).

D.M. 06/04/2004, n. 174

Regulation concerning materials and objects that can be used in fixed systems for the collection, treatment, adduction and distribution of water intended for human consumption (in implementation of Directive 98/83/CE).

General characteristics

highlighted-product

Highlighted product

pot-life

Pot-life: 50-70 min

temperature-of-use

Temperature of use: +5 / +35 °C

suitable-for-contact-with-drinking-water

Suitable for contact with drinking water

shelf-life

Shelf-life: 12 months

uv-resistant

UV-resistant

maximum-diameter-of-aggregate

Maximum diameter of aggregate: < 0.4 mm

min-recommended-thickness

Min. recommended thickness: 1.5 mm

nonflammable

Nonflammable

to-be-applied-in-two-coats

To be applied in two coats

max-recommended-thickness

Max. recommended thickness: 8 mm

density

Density: 1.9 kg/dm³

Technical specifications

Flexural strength

≥ 6 N/mm²

Permeability to water vapor

CLASS I _

Mixing ratio of the components

4.8:1 _

Darcy impermeability

10⁻¹⁰ cm/s

Capillary absorption

0.16 kg•h^0.5/m²

Static elastic modulus

15 GPa

Compressive strength

> 30 N/mm²

Bonding force

≥ 1.5 N/mm²

Available colours

- Gray

- White

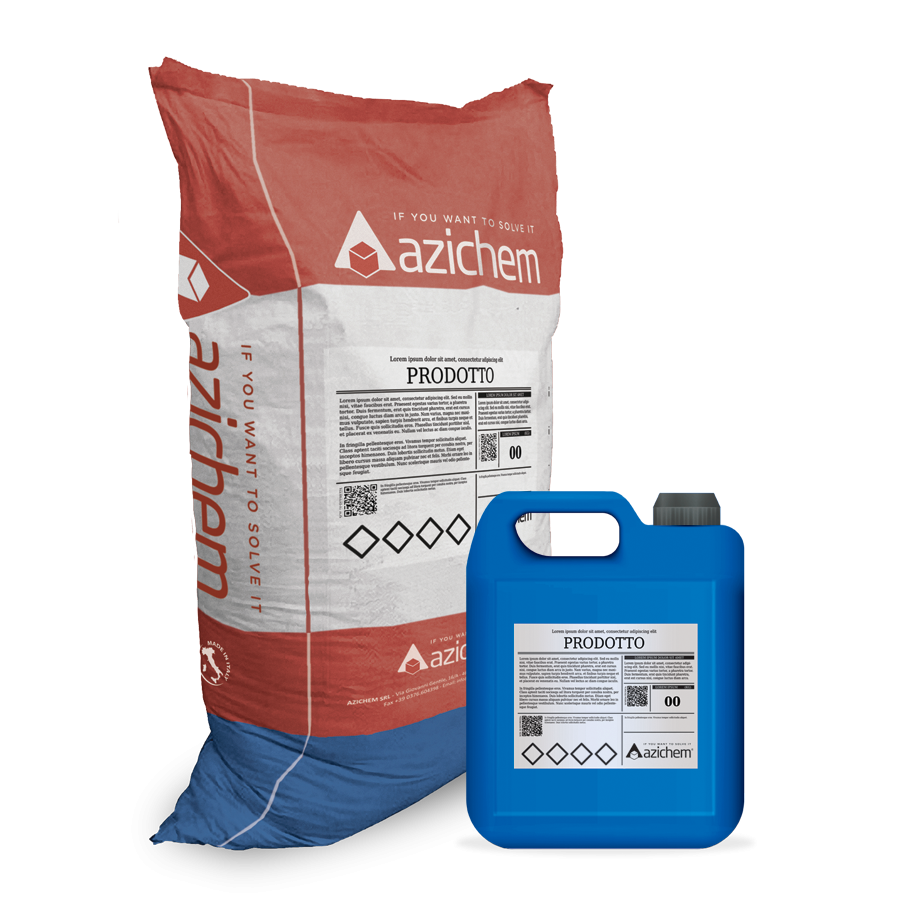

Packaging and dimensions

- Bag 25 kg [A]

- Kit: 1 Bag 25 kg [A] + 1 Plastic can 5.2 kg [B]

- Pallet: 50 x (Bag 25 kg [A])

- Pallet: 50 x (Plastic can 5.2 kg [B])

- Plastic can 5.2 kg [B]

Characteristics

OSMOCEM D is extremely easy to apply, error-proof. It induces adherence to supports by mechanical adhesion and osmotic diffusion. It is also effective in terms of negative hydrostatic thrust (negative pressure).

OSMOCEM D is compatible with food substances: it has been certified as suitable for the containment of foodstuffs and drinking water (Certificate no. 03/2010 Laboratorio Analysis Service di Settimo di Pescantina - VR).

Ivory color available on request.

Consumption

Approximately 1.9 kg/m² of OSMOCEM D for each millimetre of thickness to be made.

Use fields

Waterproofing treatments of underground structures and masonry, pools, tanks, pipes, tunnels, garages, bridges, reservoirs, basements, areas containing food, etc., provided they are sufficiently porous and absorbent and free from any waterproofing and / or water-repellent surface treatment, whether chemical (siloxanes, epoxies, polyurethanes, etc.) or natural (wax-up). Suitable in both positive or negative hydrostatic thrust conditions. It can also be used for waterproofing terraces and balconies.

Preparation of supports

Application surfaces should be clean, free of soiling, crumbling and non-adhering parts, dust, etc., water repellent treatments in general, etc. conveniently saturated with water until they reach the condition "saturated with dry surface". It is always advisable to prime the application support with approximately 100-150 g / m2 of COMPONENT B adhesive latex; in this way, at least three extraordinarily effective operations are carried out with a simple and fast priming: a) expulsion of the air from the surface porosity _ stopper (with a drastic reduction of the well-known blistering that occurs on elastic products with low thickness); b) decrease in the absorption of the support (to guarantee a suitable curing of the waterproof skim coat); c) increased adhesion thanks to the deep penetration of the polymeric component.

Use method

Mix the powder component (component A) with the hydrating solution (component B) with a drill at a low number of revolutions, pouring the powder progressively in the liquid, continue mixing until a homogeneous lump-free mixture is obtained. Moderate variations in the amount of component B in the mix are allowed, to obtain a more or less fluid compound depending on the intended use (for example, if applied with a brush more component B is required compared to as usage as easy to spread plaster). After mixing is completed wait a few minutes and stir again before proceeding with the application. Mix at a ratio of 25 kg of component A with 5.2 litres of component B.

To further to improve the performance of the coating (for example in the case of waterproofing of terraces and balconies), insert the alkaline-resistant fibreglass reinforcing mesh ARMAGLASS 160 between layers, for a general consumption of about 5 kg/m².

Application methods

- Brush

- Plastering machine

- Spatula

- Sprayer

Tool cleaning

- Water

Permitted supports

- Bricks

- Concrete

- Fiber-cement

- Floor screed

- Mixed walls (bricks and stones)

- Plasters

- Prefabricated concrete

- Rock walls

- Stone walls

Warnings, precautions and Ecology

Do not apply in case of direct exposure to sunlight and cure the protection and moist hardening.
Do not apply on little or non-porous substrates or previously coated with water-repellent treatments in general, if not after appropriate roughening by bush hammers, sanders and equipment suitable for preparatory treatments of substrates, or after appropriate treatment with suitable polymeric primers.
