GROUT 6 SFR

Castable structural, reinforced, controlled shrinkage shotcrete

Code: GRT.0071

Components: 1

Appearance: Powder

GROUT 6 SFR is a high-performance, self-levelling castable mortar, being fibre-reinforced with READYMESH MM-150 steel fibres and 6 mm READYMESH PM-060 polypropylene microfibres, with high flexural strength, great adhesion to concrete and steel, and shrinkage compensation. Aggregates with a maximum size of 6 mm. It is ideal for anchoring road joints, restorations, reinforcements and seismic adjustments, offering ductility for medium-to-high thicknesses (5–20 cm), on structures in reinforced concrete and masonry.

Linee di appartenenza

Certification obtained and Standards

Products and systems for the protection and repair of concrete structures - Structural and non-structural repair (R4)

EN 1504-3

Products and systems for the protection and repair of concrete structures - Structural and non-structural repair (R4)

General characteristics

highlighted-product

Highlighted product

maximum-diameter-of-aggregate

Maximum diameter of aggregate: 5 mm

mix-with-water

Mix with water: 11 - 14 %

nonflammable

Nonflammable

pot-life

Pot-life: 60 min

temperature-of-use

Temperature of use: +5 / +35 °C

use-wearing-protective-gloves

Use wearing protective gloves

uv-resistant

UV-resistant

Technical specifications

Bonding force

> 2.5 N/mm²

Capillary absorption

< 0.40 kg•h^0.5/m²

Chloride content

< 0.01 %

Compressive strength after 01 day

> 28 N/mm²

Compressive strength after 07 days

> 58 N/mm²

Compressive strength after 28 days

> 75 N/mm²

Density

2250 kg/m³

Flexural strength after 07 days

> 9 N/mm²

Flexural strength after 28 days

> 12 N/mm²

Flexural strength at 01 day

> 5 N/mm²

Pull-out resistance on masonry support, Pull Out

< 0.6 mm

Resistance to carbonatation

dk < cls standard mm²/m

Static elastic modulus

29 GPa

Thermal compatibility

> 2 N/mm²

Available colours

- Gray

Packaging and dimensions

- Bag 25 kg

- Pallet: 50 x (Bag 25 kg)

Consumption

Approximately 21,50 kg/m² of GROUT 6 SFR for every centimetre of thickness to be implemented (approximately 2150 kg per cubic metre).

Use fields

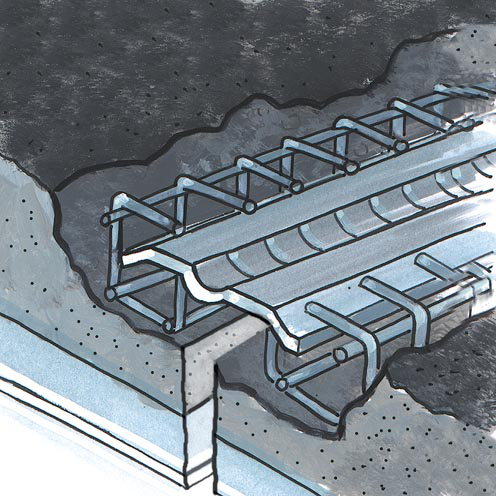

Structural restoration and adjustments, recovery and anchoring of road, motorway, airport joints and critical area joints in general.

Preparation of supports

Application surfaces should be clean, free of soiling, crumbling and non-adhering parts, dust, etc., conveniently saturated with water until they reach the condition "saturated with dry surface". An adequate roughening of the surfaces by scarifying, sandblasting etc. is always necessary in order to obtain the maximum adhesion values to the substrate. The optimal values are obtained with high pressure hydro-scarification. Bare the irons undergoing disruptive oxidation or deeply oxidized, removing the rust of the exposed irons (by sandblasting or abrasive brushes).

Use method

Pour about 2/3 of the mixing water into the mixer, add GROUT 6 SFR and the remaining water; continue to mix until a homogeneous lump-free mixture is obtained. The mixing water should be about 13%-15% by weight (3.5-4.5 litres per bag). Adopt casting procedures capable of ensuring the absence of discontinuities and avoid the formation of air pockets.

For high anchoring sections it is appropriate to add GHIAIETTO 6.10 (please refer to the appropriate technical data sheet for more information).

Application methods

- Brick trowel

- Pour out

- Finishing trowel

- Spatula

Tool cleaning

- Water

Permitted supports

- Concrete

- Asphalt
