GROUT 2 SFR
Rheoplastic, shrink-proof, fibre-reinforced mortar for precision anchorage
Code: GRT.0262
Components: 1
Appearance: Powder
GROUT 2 SFR is a high-performance, self-levelling castable mortar, being fibre-reinforced with READYMESH MM-150 steel fibres and READYMESH PM-060 polypropylene microfibres, with high flexural strength, great adhesion to concrete and steel, and shrinkage compensation. Aggregates with a maximum size of 2 mm. It is ideal for restorations, reinforcements and seismic adjustments, offering ductility for medium thicknesses (3–10 cm), on structures in reinforced concrete and masonry.
Range
Customs Code
Linee di appartenenza
Certification obtained and Standards
EN 1504-3
Products and systems for the protection and repair of concrete structures - Structural and non-structural repair (R4)
General characteristics
Maximum diameter of aggregate: 2 mm
Mix with water: 15 %
Shelf-life: 12 months
Pot-life: 30 min
Max. recommended thickness: 15 cm
Nonflammable
Temperature of use: +5 / +35 °C
Density: 2.200 kg/dm³
Technical specifications
Capillary absorption
0.38 kg•h^0.5/m²
Flexural strength
10.3 N/mm²
Flexural strength after 28 days
> 11 N/mm²
Density
2290 kg/m³
Bonding force
> 2.5 N/mm²
Static elastic modulus
30000 N/mm²
Compressive strength after 28 days
> 35 N/mm²
Wear resistance
0.8 cm³/50cm²
Breaking load longitudinal
4 N/mm²
Setting time
3 - 4 h
Compressive strength after 01 day
> 35 N/mm²
Reaction to fire
A1 _
Available colours
- Gray
Packaging and dimensions
- Bag 25 kg
- Pallet: 50 x (Bag 25 kg)
Consumption
Approximately 1900 kg of GROUT 2 SFR for every cubic metre of mixture to be made.
Use fields

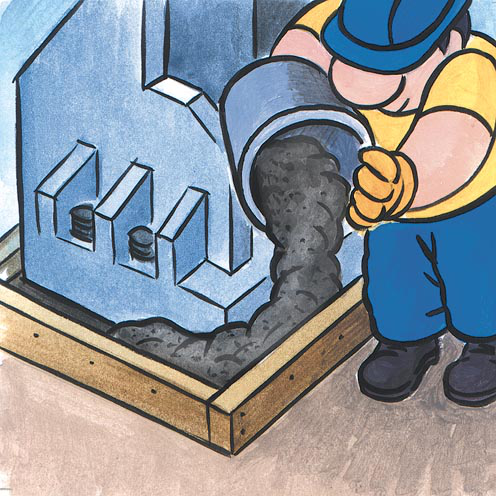

Precision anchorage of operating machines: presses, turbines, power supply units, rolling mills, alternators, overhead cranes, metal structures, tracks, etc.. Structural adaptation, renovations, drawing and reinforcements, using injections and castings inside formworks. Creation of connection anchorage using steel bars with a diameter and depth consistent with the project specifications, by casting in specifically prepared perforations. Construction of structural road joints.
Preparation of supports
The application surfaces should be clean, free of containment, inconsistent and incoherent parts, dust, etc., conveniently saturated with water to reach the "saturated to dry surface" condition. An adequate roughening of the surfaces by scarifying, sandblasting etc. is always necessary in order to obtain the maximum adhesion values to the substrate. The optimal values are obtained with high pressure hydro-scarification. Bare the irons undergoing disruptive oxidation or deeply oxidized, removing the rust of the exposed irons (by sandblasting or abrasive brushes).
Use method
Place 2/3 (approx 2.5 litres per bag) of the total water in the mix, then gradually add the product and the remaining water, mixing until you obtain an even mix with the desired consistency and no lumps.
Application methods
- Pour out
Tool cleaning
- Water
Permitted supports
- Concrete
- Mixed walls (bricks and stones)
- Prefabricated concrete
- Rusty reinforcement rods
Warnings, precautions and Ecology
Given the self-levelling properties of the product and its self-compacting capacity, you are advised to pay due attention to the vibration phase. Excess zeal in the vibration operation could worsen the aesthetic performance of the resulting manufactured work.
Do not use in the absence of adequate side confinements.
Ensure protection and damp seasoning of the surfaces exposed.
Implement casting procedures capable of ensuring the absence of vacuums and cracks; grout the mortar from one part of the perimeter of the casting to avoid air sacks.
Contact us now
Want to know more about our products?
Technical Data Sheet [ITA]
Technical Data Sheet [ESP]
Technical Data Sheet [POR]
Technical Data Sheet [DEU]
Technical Data Sheet [FRA]
Technical Data Sheet [RUM]
