FLANGIA CON VITE

Nylon fastening flange and galvanised steel self-tapping screw

Code: RNF.0389

Components: 1

Appearance: Connector

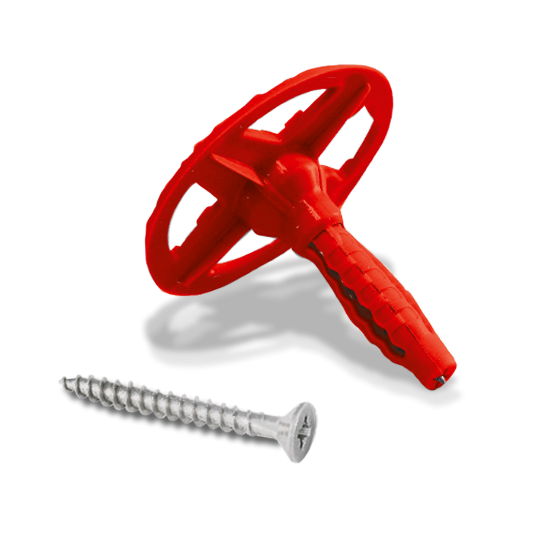

Nylon fastening flange (58 mm in diameter and 40 mm in length) with self-tapping screw in corrosion-resistant galvanised steel (30 mm) for connecting ARMAGLASS STRUCTURA mesh in anti-detachment RINFOR SYSTEM 1 and 2.

Linee di appartenenza

General characteristics

flange-housing-hole-diameter

Flange housing hole diameter: 8 mm

unlimited-shelf-life

Unlimited shelf-life

use-wearing-protective-gloves

Use wearing protective gloves

uv-resistant

UV-resistant

Technical specifications

Bending moment

20 Nm

Breaking load longitudinal

22 kN

Flange diameter

58 mm

Maximum fixable thickness

70 mm

Minimum depth of installation of the screw

30 mm

Minimum depth of the screw hole

40 mm

Minimum support thickness

60 mm

Screw head diameter

11.5 mm

Shear strength

12 kN

Twist

30 Nm

Available colours

- Red

Packaging and dimensions

- Bulk material 1 unit

Characteristics

The FLANGE is characterised by its gripping surface with improved adherence, to be particularly light, manageable, durable and tensile-resistant due to the closing cap in the input hole of the SCREW FOR CONCRETE that facilitates the operation of shaving with mortars in the RINFOR SYSTEMS 1 and 2. The galvanised steel CONCRETE SCREW is particularly resistant to corrosion.

Consumption

No less than 4 pieces per square metre when a FLANGIA CON VITE is used in the RINFOR SYSTEMS 1 and 2 to prevent slab detachment.

Use fields

Preventing slab detachment with a FLANGIA CON VITE is a robust and economical fastening component in the ARMAGLASS STRUCTURA network of the RINFOR SYSTEMS 1 and 2.

Use method

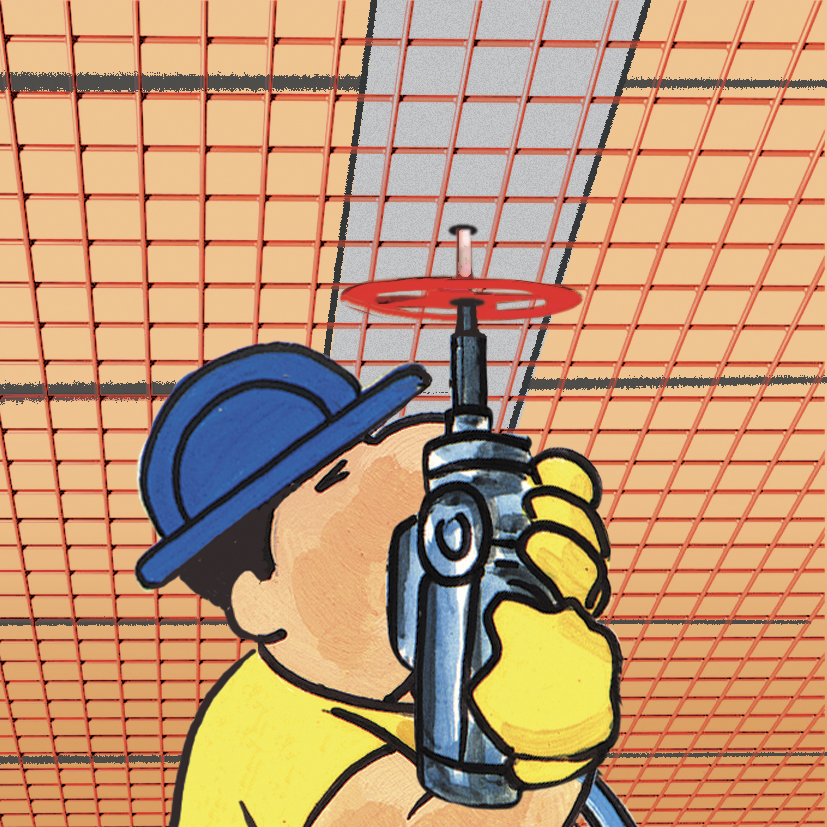

Make a hole on the concrete joists of the slab respecting the minimum/maximum dimensions indicated in the Technical Specifications then insert the FLANGE into the hole and fasten with a CONCRETE SCREW.

Application methods

- To be added to other components

- Apply by hand

Permitted supports

- Concrete
