EPOMALTA LC

Epoxy mortar for the reconstruction of wooden structures

Code: SYN.0038

Components: 3

Appearance: Liquid + Powder

A castable epoxy mortar, comprised of a two-component epoxy adhesive (A + B) to be integrated with a mixture of select mineral aggregates with a maximum diameter of 4 mm. It is used for anchoring, restoring industrial flooring, the localised regeneration of wooden beam heads, repairs and building reconstructions in general, to be completed by pouring on-site, after creating dedicated containment formwork suitably waterproofed with a release agent.

Customs Code

3907 3000

Linee di appartenenza

Certification obtained and Standards

EN 1504-3

Products and systems for the protection and repair of concrete structures - Structural and non-structural repair (R4)

General characteristics

Density: 1.08 kg/dm³

Maximum diameter of aggregate: 2.5 mm

Pot-life: 60 min

Shelf-life: 12 months

Solvent-free

Temperature of use: +5 / +35 °C

Use wearing protective gloves

UV-resistant

Technical specifications

0.32 mm

Bonding force

3.5 N/mm²

Capillary absorption

0.01

Chloride content

0.01 %

Compressive strength after 28 days

80 N/mm²

Hard to touch

2 - 4 h

Resistance to the extraction of the steel bars with improved adhesion

0.32 mm

Skid resistance

CLASS I _

Static elastic modulus

21000 N/mm²

Available colours

- Light gray

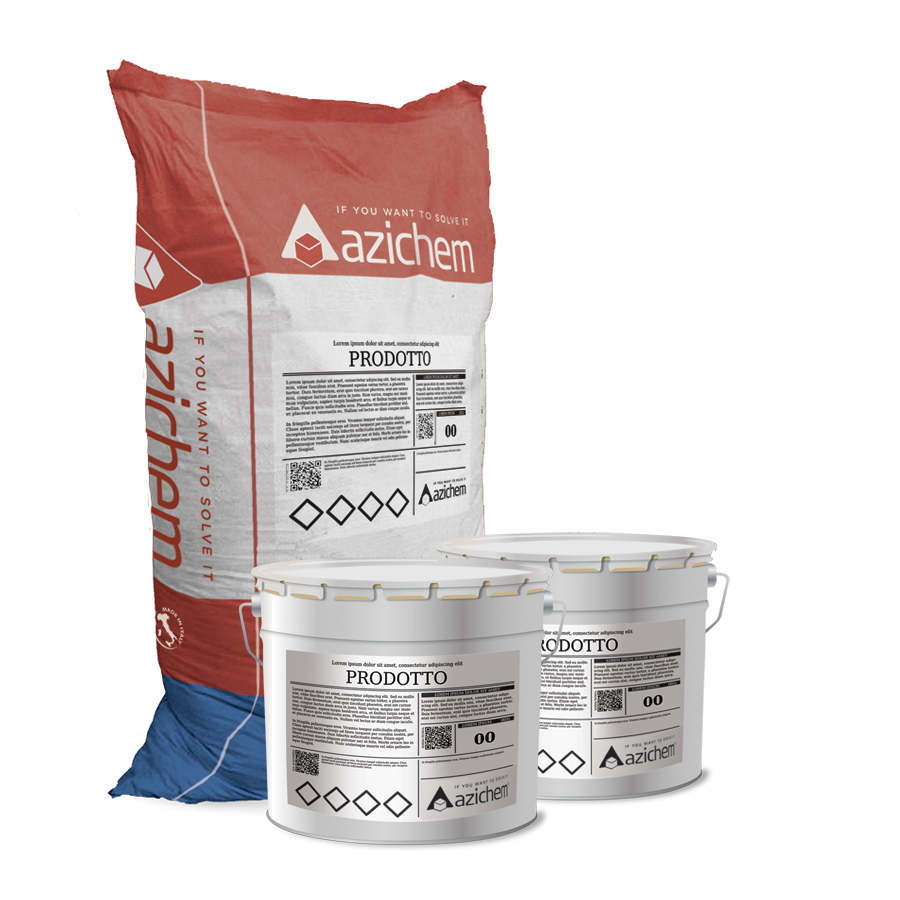

Packaging and dimensions

- Can 1 kg [A]

- Can 0.5 kg [B]

- Pail 7.5 kg [C]

- Kit: 1 Can 1 kg [A] + 1 Can 0.5 kg [B] + 1 Pail 7.5 kg [C]

Consumption

Approximately 1.55 kg of EPOMALTA LC is required for each cubic decimetre of volume to be reconstructed (about 1550 kg per cubic metre).

Use fields

Anchoring with precision alignment of industrial machinery. Anchoring of metal elements. Localised restoration of industrial flooring subject to high static and dynamic loads. Reconstruction of joints in industrial flooring. Levelling of screeds and flooring. Localised regeneration of wooden beam heads. Reconstruction of construction artefacts in general.

Preparation of supports

The surfaces on which it is to be applied are to be clean, dry, free from dust, dirt, and the like, as well as being adequately consistent. Be sure to remove any deteriorated parts of the surface.

Use method

Combine component B with component A, being sure to add all of the material contained in the packages then thoroughly mixing with a low-speed mixer until a perfectly homogeneous mixture is obtained. Add the required amount of “charger” (component C), continuing to mix until reaching the original homogeneity of the adhesive system.
As regards the anchoring of machinery, before positioning the machine, remove any deteriorated concrete and loose parts from the foundation surface, including any parts saturated with oil or grease. Check that air vent holes have been made on the base plate of the machine. During the first 10 hours following installation, ensure the substrate is not subject to vibrations from other machinery.
Regarding the reconstruction of the wooden beam heads, apply in the manner dictated by the type of operation, subject to:
- beam shoring
- insertion of reinforcing bars
- the construction of suitable formwork
- applying (pouring) cement.
Do not apply to wet and/or powdery media. Use the product immediately after mixing.
