ARMAGLASS STRUCTURA 320
320 grams/m2 of alkali-resistant fibreglass structural mesh
Code: RNF.0373
Components: 1
Appearance: Net
320 gram/square metre structural mesh made of alkali-resistant fibreglass, containing >16% zirconium dioxide, constructed in English-style lap primed with thermosetting polymer. Easy and quick application, simple to handle and to cut. Combines lightness and thinness with excellent mechanical characteristics in terms of the weft and warp. Resistant to atmospheric agents and aggressive environments, it confers durability to the composite systems in which it is used. Suitable for any substrate and perfectly compatible with both cement-based and lime-based mortars.
Range
Customs Code
Linee di appartenenza
General characteristics
Width: 100 / 200 cm
Use wearing protective gloves
Lenght: 50 m
UV-resistant
Nonflammable
Unlimited shelf-life
Suitable for contact with drinking water
Technical specifications
Alkali-resistant material
Warp tensile strength (Tensile speed 10 mm / min)
63.5 kN/m
Warp tensile strength (Tensile speed 100 mm / min)
72.5 kN/m
Single warp thread tensile strength (Tensile speed 10 mm / min)
1.27 kN
Single warp thread tensile strength (Tensile speed 100 mm / min)
1.45 kN
Single wire weft tensile strength (Tensile speed 10 mm / min)
1.37 kN
Single wire weft tensile strength (Tensile speed 100 mm / min)
1.38 kN
Weft tensile strength (Tensile speed 10 mm / min)
68.5 kN/m
Weft tensile strength (Tensile speed 100 mm / min)
69 kN/m
Warp equivalent thickness
0.044 mm
Equivalent texture thickness
0.044 mm
Resistant warp-weft section
44.776 mm²/m
Dressed fabric weight
320 g/m²
Raw fabric weight
240 g/m²
Thickness
1.15 mm
Longitudinal elongation at break
1.80 %
Single wire nominal area
0.9981 mm²
Glass density
2.68 g/cm³
Mesh size
20 x 20 mm
Net elastic modulus (warp)
66750 N/mm²
Net elastic modulus (weft)
61680 N/mm²
Glass elastic module
72000 N/mm²
Available colours
- Red

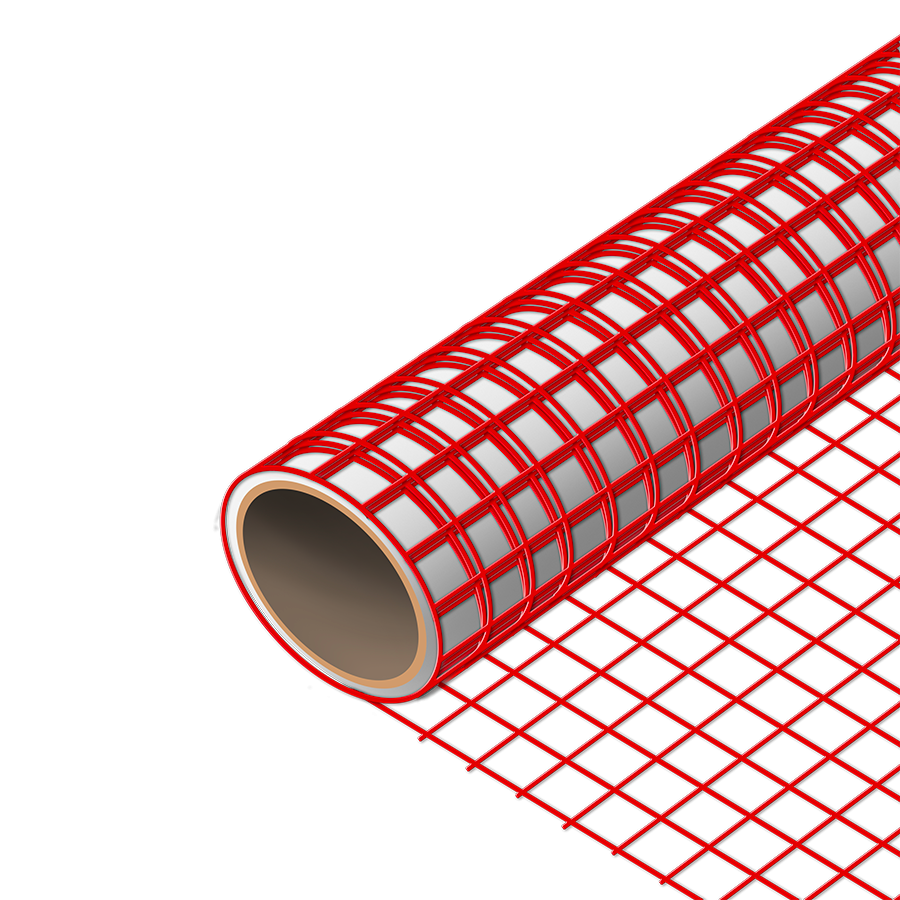

Packaging and dimensions
- Roll 100 m²
- Roll 50 m²
Consumption
1.1 m/m²: The sheets adjacent to the fibreglass mesh are to be overlapped along the edges by at least 10 centimetres.
Use fields
ARMAGLASS STRUCTURA 320 is a mesh for the structural reinforcement and consolidation of masonry and vaulted structures. It is ideal for reinforcing plasters with anti-overturning function, for the reinforcement and distribution of shrinkage stresses on walkable or drainage screeds and concrete flooring.
Use method

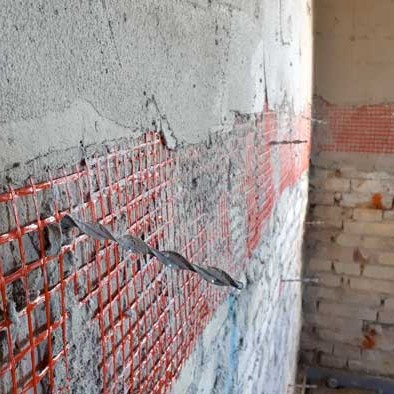

Application on masonry and vaults:
In the event that connectors are being used, proceed with creating holes of a suitable diameter, in accordance with the chosen connection system and arranged in line with the design instructions and with the selected connection system (ARMAGLASS CONNECTOR, ARMAGLASS CONNECTOR SINGLE, ARMAGLASS CONNECTOR TWIN). Secure the connectors with resin anchors (SYNTECH PROFIX) or hydraulic binder-based slurry (GROUT CABLE, SANAFLUENS). Apply an initial layer of mortar (see the technical data sheet of the selected product), positioning the ARMAGLASS STRUCTURA 320 mesh on the still-fresh mortar, taking care to ensure an overlap of at least 10 centimetres, before applying the second layer of mortar. Whilst the mortar is still fresh, lay the mesh sheeting, proceeding from top to bottom, and immersing with the help of a putty knife, being sure to overlap each segment by at least 10 centimetres and impeding the formation of bubbles and bends.
Application on screeds:
Apply an initial layer of screed (see the technical data sheet of the selected product), laying the ARMAGLASS STRUCTURA 320 mesh on the first layer of still-fresh screed, taking care to ensure an overlap of at least 10 centimetres, then applying the second layer of screed.
Application methods
- Apply by hand
Permitted supports
- Bricks
- Brickworks
- Cement-based or lime-based mortars
- Concrete
- Floor screed
- Mixed walls (bricks and stones)
- Plasters
- Porphyry and natural stones
- Stone walls
