ARMAGLASS STRUCTURA 250

280 grams/m2 of alkali-resistant fibreglass structural mesh

Code: RNF.0376

Components: 1

Appearance: Net

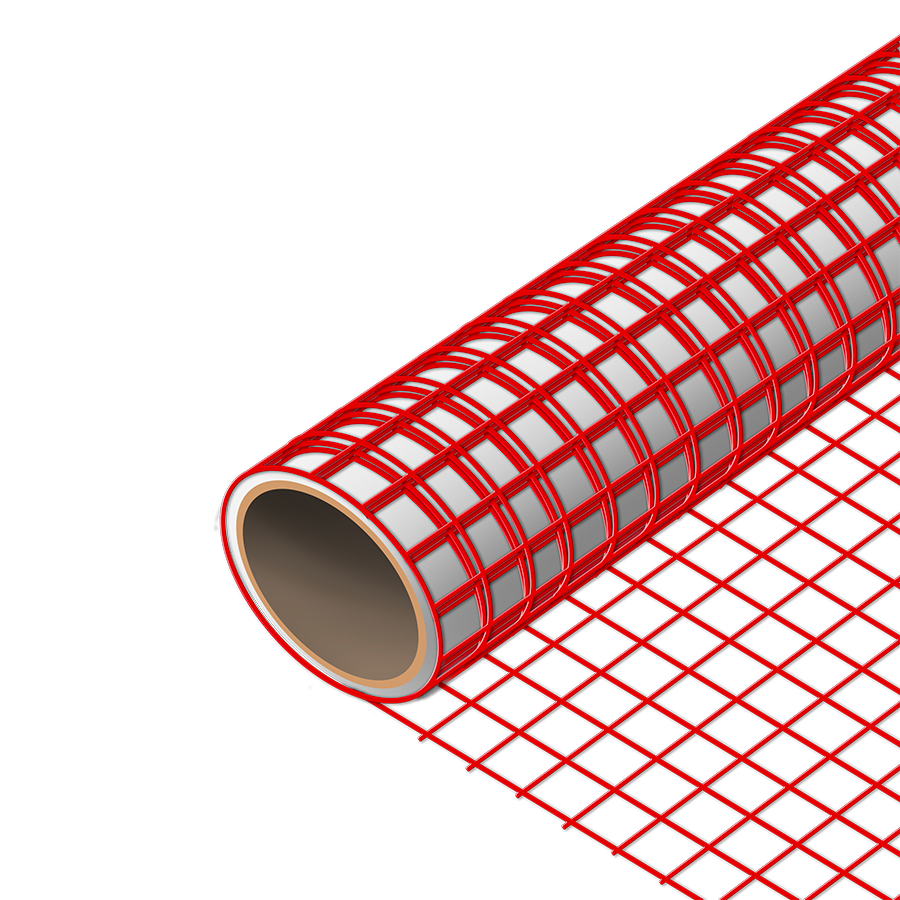

280 g/m2 structural reinforcement mesh with 25 x 25 mm square mesh, in alkali-resistant fibreglass, containing >16% zirconium dioxide, constructed with a leno weave and primed with thermosetting polymer. Certified mesh for the anti-detachment of flooring; easy and quick to apply, to handle and to cut. It combines lightness and thinness with excellent mechanical characteristics in the warp and weft. Resistant to atmospheric agents and aggressive environments, conferring durability to the composite systems in which it is used. Suitable for any substrate and perfectly compatible with both cement-based and lime-based mortars.

Linee di appartenenza

Certification obtained and Standards

Chemical-resistant product

CHEMICAL RESISTANT

Chemical-resistant product

General characteristics

width

Width: 100 / 200 cm

use-wearing-protective-gloves

Use wearing protective gloves

lenght

Lenght: 50 m

uv-resistant

UV-resistant

nonflammable

Nonflammable

unlimited-shelf-life

Unlimited shelf-life

suitable-for-contact-with-drinking-water

Suitable for contact with drinking water

Technical specifications

Equivalent texture thickness

0.0339 mm

Weft tensile strength (Tensile speed 100 mm / min)

64 kN/m

Raw fabric weight

182 g/m²

Warp tensile strength (Tensile speed 10 mm / min)

55 kN/m

Mesh size

25 x 25 mm

Single warp thread tensile strength (Tensile speed 100 mm / min)

1.60 kN

Net elastic modulus (warp)

58.441 N/mm²

Resistant warp-weft section

33.95 mm²/m

Single wire nominal area

0.789 mm²

Warp tensile strength (Tensile speed 100 mm / min)

65 kN/m

Thickness

1.10 mm

Single wire weft tensile strength (Tensile speed 10 mm / min)

1.41 kN

Net elastic modulus (weft)

61.097 N/mm²

Glass density

2.68 g/cm³

Warp equivalent thickness

0.0339 mm

Weft tensile strength (Tensile speed 10 mm / min)

58 kN/m

Dressed fabric weight

280 g/m²

Single wire weft tensile strength (Tensile speed 100 mm / min)

1.57 kN

Longitudinal elongation at break

1.70 %

Single warp thread tensile strength (Tensile speed 10 mm / min)

1.34 kN

Glass elastic module

72.000 N/mm²

Available colours

- Red

Packaging and dimensions

- Roll 100 m²

- Roll 50 m²

Characteristics

Ideal for any type of substrate. Particularly suited to preventing slab detachment in combination with special steel components, also together with mortars with a UNISAN hydraulic binder base, which increases the performance of the system by ensuring breathability and a dehumidifying effect.

Consumption

1.1 m/m²: The sheets adjacent to the fibreglass mesh are to be overlapped along the edges by at least 10 centimetres.

Use fields

ARMAGLASS STRUCTURA 250 is a mesh for the structural reinforcement and consolidation of masonry and vaulted structures. It is ideal for reinforcing plasters with anti-overturning function, for the reinforcement and distribution of shrinkage stresses on walkable or drainage screeds and concrete flooring. A certified mesh to prevent slab detachment in combination with special steel components (screws, dowels, flanges).

Use method

Application on masonry and vaults:
In the event that connectors are being used, proceed with creating holes of a suitable diameter, in accordance with the chosen connection system and arranged in line with the design instructions and with the selected connection system (ARMAGLASS CONNECTOR, ARMAGLASS CONNECTOR SINGLE, ARMAGLASS CONNECTOR TWIN). Secure the connectors with resin anchors (SYNTECH PROFIX) or hydraulic binder-based slurry (GROUT CABLE, SANAFLUENS). Apply an initial layer of mortar (see the technical data sheet of the selected product), positioning the ARMAGLASS STRUCTURA 250 mesh on the still-fresh mortar, taking care to ensure an overlap of at least 10 centimetres, before applying the second layer of mortar. Whilst the mortar is still fresh, lay the mesh sheeting, proceeding from top to bottom, and immersing with the help of a putty knife, being sure to overlap each segment by at least 10 centimetres and impeding the formation of bubbles and bends.
Application on screeds:
Apply an initial layer of screed (see the technical data sheet of the selected product), laying the ARMAGLASS STRUCTURA 250 mesh on the first layer of still-fresh screed, taking care to ensure an overlap of at least 10 centimetres, then applying the second layer of screed.

Application methods

- Apply by hand

Permitted supports

- Bricks

- Brickworks

- Cement-based or lime-based mortars

- Concrete

- Floor screed

- Mixed walls (bricks and stones)

- Plasters

- Porphyry and natural stones

- Stone walls
