ARMAGLASS STRUCTURA 115
115 grams/m2 of alkali-resistant fibreglass structural mesh
Code: RNF.0374
Components: 1
Appearance: Net
115 g/m2 structural reinforcement mesh in alkali-resistant fibreglass with 12 x 12 mm square mesh, containing >16% zirconium dioxide, constructed with a leno weave and primed with thermosetting polymer. It is straightforward and quick to apply, simple to handle and easy to cut. Resistant to atmospheric agents and aggressive environments, conferring durability to the composite systems in which it is used. Suitable for any substrate and perfectly compatible with both cement- and lime-based mortars. Perfect for strengthening reinforced plastering with an anti-overturning function along with the structural consolidation of masonry and vaulted structures.
Range
Customs Code
Linee di appartenenza
Certification obtained and Standards
CHEMICAL RESISTANT
Chemical-resistant product
General characteristics
Width: 100 / 200 cm
Use wearing protective gloves
Lenght: 50 m
UV-resistant
Nonflammable
Unlimited shelf-life
Suitable for contact with drinking water
Technical specifications
Mesh size
12 x 12 mm
Warp tensile strength (Tensile speed 100 mm / min)
30 kN/m
Single wire weft tensile strength (Tensile speed 10 mm / min)
0.410 kN
Glass elastic module
72.000 N/mm²
Single wire nominal area
0.229 mm²
Thickness
0.90 mm
Weft tensile strength (Tensile speed 10 mm / min)
30 kN/m
Single wire weft tensile strength (Tensile speed 100 mm / min)
0.452 kN
Single warp thread tensile strength (Tensile speed 10 mm / min)
0.356 kN
Resistant warp-weft section
15.672 mm²/m
Dressed fabric weight
112 g/m²
Longitudinal elongation at break
1.50 %
Weft tensile strength (Tensile speed 100 mm / min)
33 kN/m
Warp tensile strength (Tensile speed 10 mm / min)
26 kN/m
Single warp thread tensile strength (Tensile speed 100 mm / min)
0.410 kN
Glass density
2.68 g/cm³
Raw fabric weight
84 g/m²
Available colours
- Red

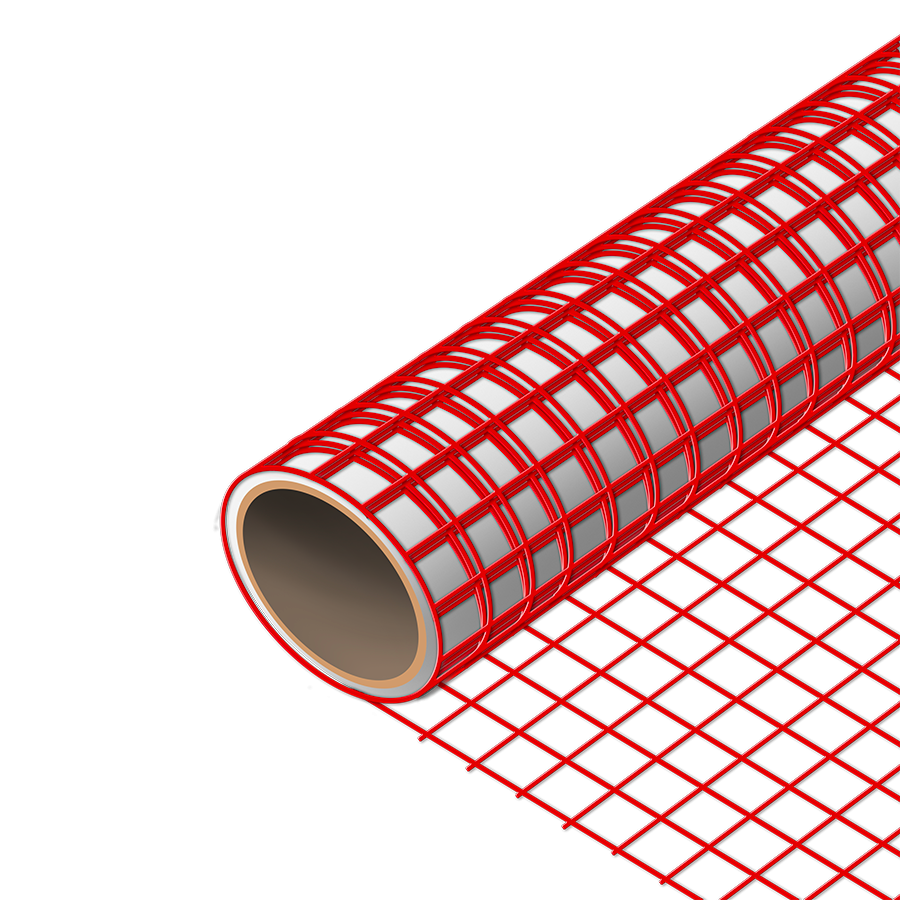

Packaging and dimensions
- Roll 100 m²
- Roll 50 m²
Characteristics
Easy and quick application, simple to handle and to cut. Combines lightness and thinness with excellent mechanical characteristics in terms of the weft and warp. Resistant to atmospheric agents and aggressive environments, it confers durability to the composite systems in which it is used. Suitable for any substrate and perfectly compatible with both cement-based and lime-based mortars.
Consumption
1.1 m/m²: The sheets adjacent to the fibreglass mesh are to be overlapped along the edges by at least 10 centimetres.
Use fields
ARMAGLASS STRUCTURA 115 is a mesh for the structural reinforcement and consolidation of masonry and vaulted structures. It is ideal for reinforcing plasters with anti-overturning function.
Use method
Application on masonry and vaults:
In the event that connectors are being used, proceed with creating holes of a suitable diameter, in accordance with the chosen connection system and arranged in line with the design instructions and with the selected connection system (ARMAGLASS CONNECTOR, ARMAGLASS CONNECTOR SINGLE, ARMAGLASS CONNECTOR TWIN). Secure the connectors with resin anchors (SYNTECH PROFIX) or hydraulic binder-based slurry (GROUT CABLE, SANAFLUENS). Apply an initial layer of mortar (see the technical data sheet of the selected product), positioning the ARMAGLASS STRUCTURA 115 mesh on the still-fresh mortar, taking care to ensure an overlap of at least 10 centimetres, before applying the second layer of mortar. Whilst the mortar is still fresh, lay the mesh sheeting, proceeding from top to bottom, and immersing with the help of a putty knife, being sure to overlap each segment by at least 10 centimetres and impeding the formation of bubbles and bends.
Application methods
- Apply by hand
Permitted supports
- Bricks
- Brickworks
- Cement-based or lime-based mortars
- Concrete
- Mixed walls (bricks and stones)
- Plasters
- Porphyry and natural stones
- Stone walls
