ANCHORSANA FIX

Quick compound, lime and aluminate based, for fixings and anchors

Code: INT.0018

Components: 1

Appearance: Powder

Premixed based on hydraulic lime, special sulfur aluminate binders, water retainers, shrinkage compensators and reducers of the water/binder ratio, used for fixing and anchoring, in masonry, connectors, inserts, bars, brackets, grouting of the joints, tacking of lesions. It is a product with accelerated setting and hardening, with setting start at 30 ', end setting at 60' and development of mechanical strength already after 90 'of curing. Particularly recommended in the restoration of period and monumental buildings.

Linee di appartenenza

Certification obtained and Standards

Specification for Mortar for Masonry - General purpose rendering/plastering mortar (GP)

EN 998-1

Specification for Mortar for Masonry - General purpose rendering/plastering mortar (GP)

Masonry mortars - Masonry mortar for general purposes (G)

EN 998-2

Masonry mortars - Masonry mortar for general purposes (G)

EN 998-2

M20

EN 998-2

General characteristics

density

Density: 1.97 kg/dm³

maximum-diameter-of-aggregate

Maximum diameter of aggregate: 0.5 mm

mix-with-water

Mix with water: 23 - 30 %

nonflammable

Nonflammable

pot-life

Pot-life: 15 min

shelf-life

Shelf-life: 6 months

temperature-of-use

Temperature of use: +5 / +30 °C

use-wearing-protective-gloves

Use wearing protective gloves

Technical specifications

Bonding force

> 1.0 N/mm²

Capillary absorption

< 0.50 kg•h^0.5/m²

Complete hardening

60 min

Compressive strength after 01 day

> 13 MPa

Compressive strength after 1,5 hours

> 4 MPa

Compressive strength after 28 days

> 20 MPa

Flexural strength after 28 days

> 6 MPa

Flexural strength at 01 day

> 4 MPa

Hard to touch

30 min

Permeability to water vapor

≤ 35 _

pH

> 12 _

Reaction to fire

A1 _

Static elastic modulus

11000 N/mm²

Available colours

- Light gray

Packaging and dimensions

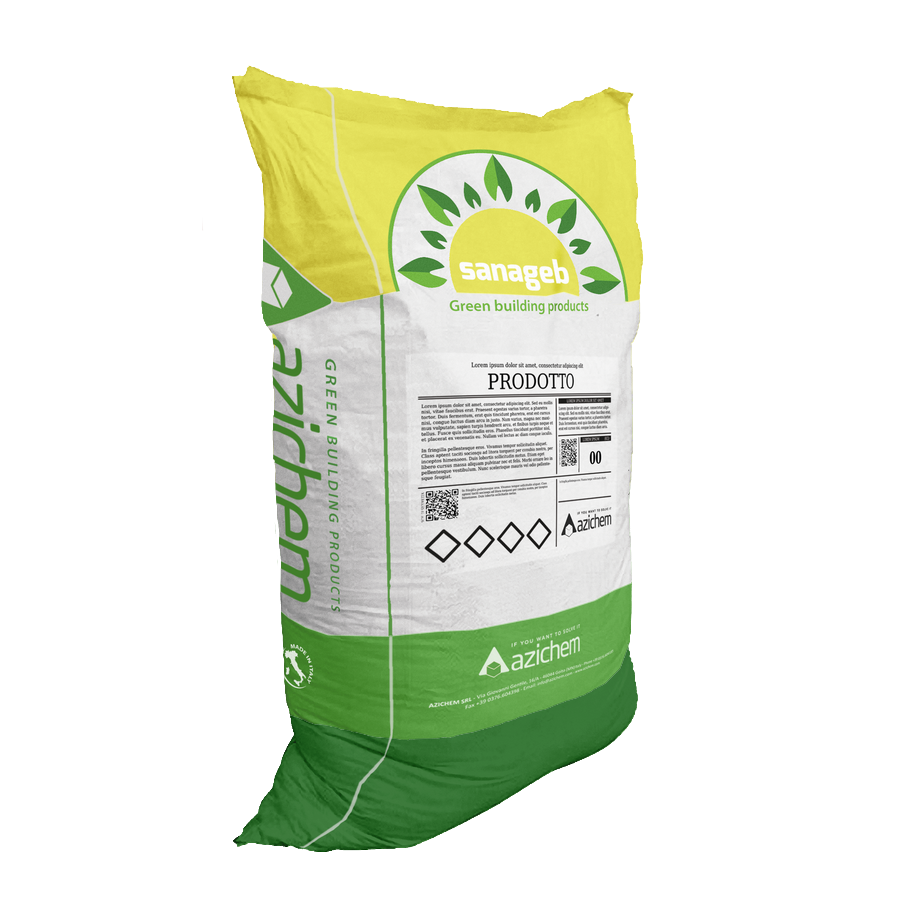

- Bag 25 kg

- Pallet: 50 x (Bag 25 kg)

Characteristics

The particularly fine constituent materials allow adequate anchoring even in the presence of a small space between hole and connectors. By mixing ANCHORSANA FIX with different water contents, the product passes from thixotropic consistencies (23% water) to fluid gel consistencies (30% water), allowing any type of anchoring, from overhead to inclinations towards the bass. The product does not contain resins and solvents and can also be used indoors, subject to the usual precautions necessary when handling materials based on alkaline and irritating powders such as lime (use suitable personal protective equipment, such as gloves and protective goggles).

Consumption

Approximately 1.6 kg of ANCHORSANA FIX for each cubic decimeter of volume to be filled.

Use fields

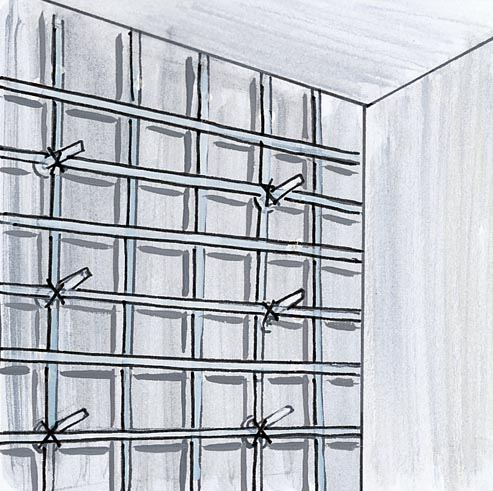

Fixing and anchoring, in masonry bodies, of rigid connectors, jib connectors, inserts, bars with improved adherence, anchors. It develops great adhesion on materials of different nature: metal, fiberglass, basalt.

Preparation of supports

Blow with compressed air and forced suction of the housing holes. The application surfaces must be clean, free of dirt, moving, crumbly and incoherent parts, dust, etc., suitably saturated with water until reaching the condition of "saturated with dry surface".

Use method

Pour about 2/3 of the mixing water into the mixer; gradually add ANCHORSANA FIX and the water still required, continuing to mix, until a homogeneous, lump-free mixture of the desired consistency is obtained. Apply with a trowel or by casting. The mixing water indicatively required is equal to 23% by weight for thixotropic doughs, and to 30% by weight for doughs with a plastic-fluid consistency.

Application methods

- Brick trowel

- Pour out

Tool cleaning

- Water

Permitted supports

- Plasters

- Concrete

- Cement-based or lime-based mortars

- Bricks

- Tuff

- Mixed walls (bricks and stones)

- Brickworks

- Stone walls

- Floor screed
